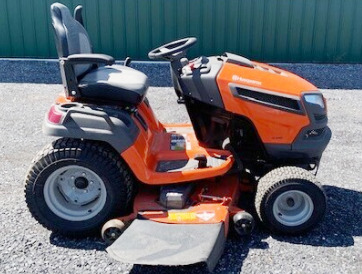

Husqvarna TS 348D Garden Tractor
The
Husqvarna TS348D garden tractor was manufactured from 2017 to 2022. The
Husqvarna TS 348D tractor is powered by 44.2 cubic inches (725 cc) Kohler KT735
7000 Series 4-cycle vertical shaft twin-cylinder air-cooled gasoline engine with
a rated power of 24 Hp (17.9 kW).
The engine has a fixed main jet carburetor, full pressure lubrication
with oil filter, and air cleaner with paper element. The
tractor is fitted with Tuff Torq K66 ELD belt-driven hydrostatic
transaxle with foot-controlled variable speed drive. The max forward
speed - 5.5 mph (8.8 km/h), max reverse speed - 2.1 mph (3.4 km/h).
The Husqvarna TS348D is equipped with a manual steering system,
pneumatic wheels, 16x6.50-8 front tires, and 23x10.5-12 rear tires. The
lawn tractor is compatible with a 48" mid-mount 3-blade mower deck with
cutting height of 1.5-4.0 in (38-101 mm), electric blade engagement, 6
cut positions, and mechanical lift system with hand operated.
Engine Model |
Kohler KT735 7000 Series |
Engine Type |
4-cycle vertical shaft twin-cylinder air-cooled gasoline |
Number of Cylinders |
2 |
Displacement, cu.in (cc) |
44.2 (725) |
Engine Bore, in (mm) |
3.27 (83.0) |
Engine Stroke, in (mm) |
2.64 (67.0) |
Rated Engine Power, hp (kW) |
24.0 (17.9) |
Rated Engine Speed, rpm |
3600 |
Maximum Torque, Nm (lb-ft) |
54.9 (40.5) |
Torque Speed, rpm |
2600 |
Low Idle Speed, rpm |
1750±75 |
High Idle Speed, rpm |
3600±50 |
Compression Ratio |
9.1:1 |
Fuel System Type |
Carburetor |
Carburetor Type |
Fixed main jet |
Fuel Pump |
Pulse type |
Fuel Filter |
In-line |
Governor Type |
Mechanical |
Lubrication System |
Full pressure |
Oil filter |
Full-flow type |
Air Cleaner |
Replaceable, paper element |
Spark Plug Type |
Champion RC12YC |
Spark Plug Gap, in (mm) |
0.030 (0.76) |
Module Air Gap, in (mm) |
0.008-0.012 (0.203-0.305) |
Intake Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
Exhaust Valve Clearance, in (mm) |
0.004-0.006 (0.10-0.15) |
Fuel Tank Capacity, gal (L) |
4.0 (15.0) |
Oil Capacity, qts (L) |
2.0 (1.9) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator, 12A |
Starting System |
12-Volt key start |
Starter Type |
Electric |
Number of Batteries |
1 |
Battery Type |
Lead Acid |
Battery CCA |
230 |
Electrical Ground |
Negative |
PTO Operational Type |
Independent |
PTO Clutch |
Electric |
PTO Speed, rpm |
3000 |
Transmission Model |
Tuff Torq K66 ELD |
Transmission Type |
Belt-driven hydrostatic |
Number of Forward Gears |
Infinite |
Number of Reverse Gears |
Infinite |
Drive Train |
Transaxle with foot-controlled variable speed drive |
Axle Shaft Size, in (mm) |
1.0 (25.4) |
Maximum Forward Speed, mph (kph) |
5.5 (8.8) |
Maximum Reverse Speed, mph (kph) |
2.1 (3.4) |
Drive Wheels |
2WD 4x2 |
Front Axle |
Cast iron |
Steering Configuration |
Front steer |
Steering System |
Manual |
Tire Type |
Pneumatic wheels |
Front Tire Size |
16x6.50-8 |
Rear Tire Size |
23x10.5-12 |
Wheelbase, in (mm) |
48 (1220) |
Length, in (mm) |
72 (1825) |
Height, in (mm) |
49 (1240) |
Overall Width (Max), in (mm) |
60 (1520) |
Overall Width (Min), in (mm) |
50 (1270) |
Weight, lb (kg) |
631 (287) |
Mower Deck Type |
Mid-mount |
Mower Deck Construction |
Welded |
Mower Deck Material |
10-Gauge steel |
Cutting Methods |
Collect, mulch, side discharge |
Number of Blades |
3 |
Blade Engagement |
Electric |
Cutting Width, in (mm) |
48 (1220) |
Cutting Height, in (mm) |
1.5-4.0 (38-101) |
Spindle Material |
Ductile cast iron |
Cut Positions |
6 |
Anti-Scalp Wheels |
4 |
Deck Drive |
Belt |
Lift System |
Mechanical, hand operated |
