Kubota TL720 Front End Loader
The

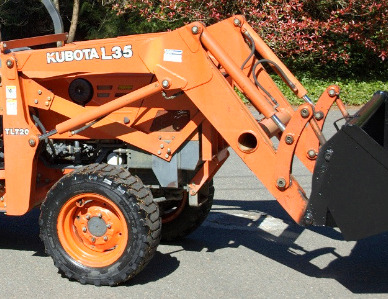

Kubota TL720 loader is available for Kubota L35 tractor loader backhoe. The
Kubota TL720 loader has double acting hydraulic lifting and bucket cylinders.
The loader’s maximum lift height is 2670 mm (105.5 in) at pin, and clearance
with bucket dumped is 1945 mm (76.8 in). The lifting capacity is 749 kg (1653
lbs) at maximum height (bucket pin), and breakout force is 1245 kg (2745 lbs).
The raising time is 3.2 sec from ground line to max height, and bucket
dumping time is 1.9 sec. Compatible bucket for the Kubota TL720
front-end loader: a 66" (1670 mm) standard material bucket with a rated
capacity of 0.39 m3 (13.8 cu.ft).
| Tractor model |
Kubota L35 TLB |
| Front tires |
27x10.5-15 |
| Rear tires |
15-19.5 |
| Rated flow, lpm (gpm) |
65.0 (17.0) |
| Maximum pressure, bar (psi) |
170 (2500) |
| Loader model |
Kubota TL720 |
| Leveling System |
Standard, Hydraulic |
| Tool Attachment |
Pin Type |
| Net weight, lbs (kg) |
1202 (546) |
| Width, mm (in) |
1670 (66) |
| Depth, mm (in) |
623 (24.5) |
| Height, mm (in) |
584 (23) |
| Length, mm (in) |
816 (32.1) |
| Capacity (Struck), m3 (cu.ft.) |
0.32 (11.3) |
| Capacity (Heaped), m3 (cu.ft.) |
0.39 (13.8) |
| Weight, kg (lbs) |
150 (330) |
| Maximum lift height to pivot pin, mm (in) |
2670 (105.5) |
| Clearance with bucket dumped, mm (in) |
1945 (76.8) |
| Reach at maximum height, mm (in) |
652 (25.8) |
| Maximum dump angle, degrees |
44 |
| Bucket rollback angle, degrees |
45 |
| Digging depth, mm (in) |
170 (6.7) |
| Lift capacity to maximum height at pivot pin, kg (lbs) |
749 (1653) |
| Lift capacity to maximum height at 19.5" (0.5m) forward of pivot pin, kg (lbs) |
565 (1240) |
| Lift capacity to 59" (1.5m) height at pivot pin, kg (lbs) |
964 (2120) |
| Lift capacity to 59" (1.5m) height at 19.5" (0.5m) forward of pivot pin, kg (lbs) |
455 (1005) |
| Breakout force at pivot pin, kg (lbs) |
1245 (2745) |
| Raise to full height |
3.2 sec. |
| Lowering time self level valve |
2.1 sec. |
| Bucket rollback time |
1.3 sec. |
| Bucket dumping time |
1.9 sec. |
