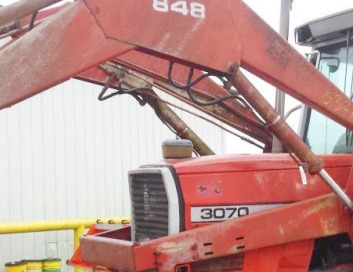

Massey Ferguson 848 Loader
The
Massey Ferguson 848 front end loader is designed for MF 3070, 3090 tractors. The
front end loader has double acting hydraulic bucket and lift cylinders. The MF
848 front end loader has a lift capacity (at bucket pin) of 3500 lbs (1587 kg)
to a max height of 133.5" (3390 mm), and breakout force (bucket on ground) of
4800 lbs (2177 kg).
The clearance with a bucket dumped is 106" (2690 mm) at maximum dump
angle of 43 degrees. The estimated cycle times are 5.5 sec lifting to
maximum height, and 4.1 sec max bucket dumping. The MF
848 loader is compatible with a 84" (2130 mm) standard material bucket
with a rated capacity of 0.87 m3 (30.5 cu.ft).
| Tractor model |
MF 3070, 3090 |
| Front tires |
13.6x28 |
| Rear tires |
18.4x38 |
| Pump capacity, gpm (lpm) |
13.2 (50.0) |
| Hydraulic pressure, psi (bar) |
2610 (180) |
| Width, in (mm) |
84 (2130) |
| Struck capacity, cu.ft (m3) |
25,3 (0.74) |
| Heaped capacity, cu.ft (m3) |
30,5 (0.87) |
| Maximum lift height at pivot pin, in (mm) |
133.5 (3390) |
| Clearance at full height, bucket dumped, in (mm) |
106 (2690) |
| Reach at maximum height, in (mm) |
38 (960) |
| Reach at ground, bucket level, in (mm) |
82 (2080) |
| Bucket dump angle, degrees |
43 |
| Bucket rollback angle, degrees |
18 |
| Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) |
3500 (1587) |
| Breakout Force at Pivot Pin, lbs (kg) |
4800 (2177) |
| Loader Raise, sec |
5,5 |
| Loader Lower, sec |
2,5 |
| Bucket Dump, sec |
4,1 |
| Bucket Rollback, sec |
2,3 |
