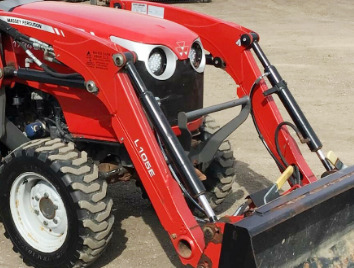

Massey Ferguson L105E Loader
The
Massey Ferguson L105E non-self leveling front end loader is designed for MF
1726E, 1734E, 1739E tractors. The front end loader has double acting hydraulic
bucket and lift cylinders. The MF L105E front end loader has a lift capacity (at
bucket pin) of 1190 lbs (540 kg) to a max height of 95.7" (2400 mm) and breakout
force (bucket on ground) of 2090 lbs (950 kg).
The maximum bucket dump angle is 45 degrees at maximum height. The
Massey Ferguson L105E loader is compatible with a 60" (1530 mm) standard
material bucket with a heaped capacity of 0.30 m3 (10.6 cu.ft).
| Tractor Models |
MF 1726E, 1734E, 1739E |
| Front Tires |
27x8.5-15 |
| Rear Tires |
38x14.00-20 |
| Hydraulic System Flow, gpm (lpm) |
6.7 (25.5) |
| Hydraulic Pressure, psi (bar) |
2132 (147) |
| Loader Model |
MF L105E NSL |
| Leveling Configuration |
Non-self leveling |
| Lift Cylinder |
Two, double acting |
| Lift Cylinder Diameter, in (mm) |
2.0 (50) |
| Bucket Cylinder |
Two, double acting |
| Bucket Cylinder Diameter, in (mm) |
2.2 (55) |
| Tool Attachment |
Pin Type |
| Width, in (mm) |
60 (1530) |
| Struck Capacity, cu. ft (m3) |
8.5 (0.24) |
| Heaped Capacity, cu. ft (m3) |
10.6 (0.30) |
| Maximum Lift Height to Pivot Pin, in (mm) |
95.7 (2400) |
| Digging Depth, in (mm) |
3.2 (80) |
| Maximum Dump Angle, degrees |
45 |
| Maximum Rollback Angle, degrees |
25 |
| Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) |
1190 (540) |
| Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) |
830 (380) |
| Breakout Force at Pivot Pin, lbs (kg) |
2090 (950) |
| Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) |
1460 (660) |
| Maximum Rollback Force, lbs (kg) |
3260 (1480) |
