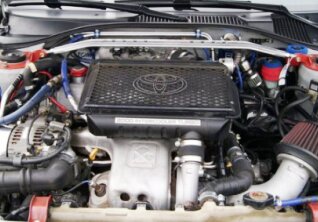

Toyota 3S-GTE Specifications
| Engine Model: Toyota 3S-GTE |
| Engine Type: 4-cycle 4-cylinder turbocharged gasoline engine |
| Total Displacement: 120.8 cu.in (2.0 L) |
| Rated Engine Power: 111 Hp (82 kW) at 5600 rpm |
| Fuel System: Multi-point fuel injection (MPFI) |
____________________________________________________________________________________
- Toyota 3S-GTE Engine Specifications
- Toyota 3S-GTE Engine Maintenance
- Toyota 3S-GTE Engine Troubleshooting
| General Technical Data |
Engine Model ............... Toyota 3S-GTE
Engine Type ............... 4-cycle 4-cylinder 16-valve DOHC turbocharged petrol engine
Number of Cylinders ............... 4
Number of Valves ............... 16
Displacement, cu.in (L) ............... 120.8 (1.98)
Cylinder Bore, in (mm) ............... 3.39 (86.0)
Piston Stroke, in (mm) ............... 3.39 (86.0)
Rated Engine Power, hp (kW) ............... 111 (82)
Rated Engine Speed, rpm ............... 5600
Maximum Torque, Nm (lb-ft) ............... 166 (132)
Torque Speed, rpm ............... 3200
Idle Speed, rpm ............... 800±50
Firing Order ............... 1-3-4-2
Compression Ratio ............... 8.5:1
Cylinder Bore Type ............... Cast-iron
Fuel System ............... MPFI (Multi-point fuel injection)
Fuel Type ............... Gasoline
Electrical System Rating, Volts ............... 12
| Cylinder Block |
Cylinder bore inside diameter (Standard), mm (in) ............... 86.000-86.010 (3.3858-3.3862)
Cylinder bore inside diameter (Maximum), mm (in) ............... 86.23 (3.3949)
Cylinder block warpage (Maximum), mm (in) ............... 0.05 (0.0020)
Cylinder block main journal bore diameter, mm (in) ............... 59.020-59.026 (2.3236-2.3239)
Connecting rod thrust clearance, mm (in) ............... 0.160-0.312 (0.0063-0.0123)
Crankshaft journal diameter, mm (in) ............... 54.988-55.003 (2.1653-2.1655)
Crank pin outside diameter, mm (in) ............... 47.985-48.000 (1.8892-1.8898)
Crank pin taper and out-of-round, mm (in) ............... 0.02 (0.0008)
| Cylinder Head and Valves |
Cylinder head warpage (Cylinder block side), (in) ............... 0.05 (0.0020)
Cylinder head warpage (Manifold side), mm (in) ............... 0.10 (0.0039)
Guide bushing inside diameter, mm (in) ............... 6.000-6.018 (0.2362-0.2369)
Intake valve clearance (Cold), mm (in) ............... 0.15-0.25 (0.006-0.010)
Exhaust valve clearance (Cold), mm (in) ............... 0.28-0.38 (0.011-0.015)
Valve stem diameter (Intake), mm (in) ............... 5.960-5.975 (0.2346-0.2352)
Valve stem diameter (Exhaust), mm (in) ............... 5.955-5.970 (0.2344-0.2350)
Valve stem to guide bushing clearance (Intake), mm (in) ............... 0.025-0.060 (0.0010-0.0024)
Valve stem to guide bushing clearance (Exhaust), mm (in) ............... 0.030-0.065 (0.0012-0.0026)
Valve face angle, degrees ............... 44.5
Valve head margin thickness, mm (in) ............... 0.8 –1.2 (0.031-0.047)
Valve overall length (Intake), mm (in) ............... 100.50 (3.9567)
Valve overall length (Exhaust), mm (in) ............... 99.55 (3.9193)
Valve spring free length, mm (in) ............... 44.43 (1.7492)
Valve lifter bore diameter, mm (in) ............... 37.000-31.021 (1.2205-1.2213)
Valve lifter diameter, mm (in) ............... 30.975-30.985 0.2195-1.2199)
Camshaft runout (Maximum), mm (in) ............... 0.06 (0.0024)
Cam height (Intake, std), mm (in) ............... 41.010-41.110 (1.6146-1.6185)
Cam height (Exhaust, std), mm (in) ............... 41.090-41.190 (1.6177-1.6217)
Cam height (Intake, min), mm (in) ............... 39.90 (1.5709)
Cam height (Exhaust, min), mm (in) ............... 39.98 (1.5740)
Camshaft journal diameter, mm (in) ............... 26.959-26.975 (1.0614-1.0620 in)
| Piston and Piston Rings |
Piston outside diameter, mm (in) ............... 85.920-85.930 (3.3827-3.3831)
Cylinder bore diameter to piston diameter, mm (in) ............... 0.070-0.090 (0.0028-0.0035)
Piston pin outside diameter, mm (in) ............... 21.997-22.009 (0.8660-0.8665)
Top ring groove clearance, mm (in) ............... 0.040-0.080 (0.0016-0.0031)
Second ring groove clearance, mm (in) ............... 0.030-0.070 ( 0.0012-0.0028)
Top ring end gap (Standard), mm (in) ............... 0.330-0.550 (0.0130-0.0217)
Top ring end gap (Maximum), mm (in) ............... 0.85 (0.0335)
Second ring end gap (Standard), mm (in) ............... 0.450-0.670 (0.0177-0.0264)
Second ring end gap (Maximum), mm (in) ............... 0.97 (0.0382)
Oil ring end gap (Standard), mm (in) ............... 0.200-0.600 (0.0079-0.0236)
Oil ring end gap (Maximum), mm (in) ............... 0.90 (0.0354)
