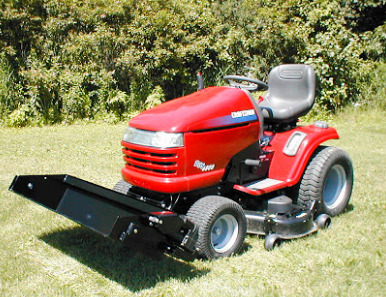

Craftsman DGT6000 Garden Tractor
The
Craftsman DGT6000 is a 2-wheel drive garden tractor. This model was manufactured
between 2004 and 2005. The Craftsman DGT 6000 driveline consists of a 44 cu.in
(725 cc) Kohler Command CV740 4-cycle V-twin cylinder OHV air-cooled gasoline
engine and Hydro-Gear 311-3500 belt-driven hydrostatic transmission, or gear
transmission with 6 forward and 2 revers gears.
The engine has a cylinder bore of 3.27" (83 mm), piston stroke of 2.64"
(67 mm), and rated power of 27 hp (20.1 kW). The fuel system has a fixed
main jet carburetor and pulse fuel pump.
Max. forward speed - 5.8 mph (9.3 km/h), max. reverse speed - 2.1 mph
(3.4 km/h). The Craftsman DGT6000 tractor was equipped with 16x7.50-8
front tires and 24x12.0-12 rear tires. The tractor can be fitted with
the following attachments: a 48" or 54" mid-mount 3-blade mower decks
with cutting height of 1.5-4.5 inches (37-115 mm) and mechanical lift
system.
| Engine Model |
Kohler Command CV740 |
| Engine Type |
4-cycle V-twin cylinder OHV air-cooled gasoline engine |
| Number of Cylinder |
2 |
| Piston Displacement, cu.in (cc) |
44.0 (725) |
| Engine Bore, in (mm) |
3.27 (83.0) |
| Engine Stroke, in (mm) |
2.64 (67.0) |
| Engine Power, Hp (kW) |
27.0 (20.1) |
| Maximum Torque, Nm (ft-lb) |
57.9 (42.7) |
| Fast Idle Speed, rpm |
3000 |
| Low Idle Speed, rpm |
1500 |
| Compression Ratio |
9:1 |
| Fuel System Type |
Carburetor |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor |
Centrifugal Mechanical Flyweight |
| Cooling System |
Air Intake |
| Air Cleaner |
Replaceable, paper element |
| Lubrication System Type |
Full-Pressure |
| Oil Filter |
Full-flow |
| Ignition System Type |
Electronic |
| Spark Plug |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.03 (0.76) |
| Fuel Tank Capacity, gal (L) |
5.0 (19.0) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator, 15A |
| Starter Type |
Electric |
| Number of Batteries |
1 |
| Battery Voltage, Volts |
12 |
| Battery, AH |
35 |
| Battery, CCA |
280 |
| Electric Ground |
Negative |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| PTO Speed, rpm |
3300 |
| Transmission Model |
Hydro-Gear 311-3500 |
| Transmission Type |
Belt-driven hydrostatic |
| Number of Forward Gears |
Infinite |
| Number of Reverse Gears |
Infinite |
| Maximum Forward Speed, mph (kph) |
5.8 (9.3) |
| Maximum Reverse Speed, mph (kph) |
2.1 (3.4) |
| Transmission Type |
Belt-driven gear |
| Gearbox Type |
6F/2R |
| Number of Forward Gears |
6 |
| Number of Reverse Gears |
2 |
| Maximum Forward Speed, mph (kph) |
5.4 (8.7) |
| Maximum Reverse Speed, mph (kph) |
2.1 (3.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Mechanical disc |
| Front Tire Size |
16x7.50-8 |
| Rear Tire Size |
24x12.0-12 |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
48 (1215) |
| Cutting Height, in (mm) |
1.5-4.5 (37-115) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
54 (1370) |
| Cutting Height, in (mm) |
1.5-4.5 (37-115) |
| Cut positions |
6 |
| Drive System |
Belt |
| Lift System |
Mechanical |
