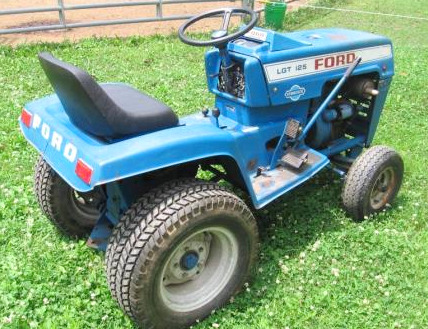

Ford LGT125 Garden Tractor

The Ford LGT125 is a LGT-series garden tractor. This model was manufactured by Jacobsen built from 1972 to 1983. The Ford LGT-125 driveline components: Kohler K301AS four-stroke single cylinder air-cooled gasoline engine and hydrostatic transmission with infinite forward and reverse gears in two ranges (Lo-Hi).

The 29.1 cubic inches (0.48 L) engine has a cylinder bore of 3.38 inches (86 mm), piston stroke of 3.25 inches (83 mm), and rated power of 12 hp (8.9 kW) at 3600 rpm. Max. forward speed - 4.8-7.1 mph (7.7-11.4 km/h), max. reverse speed - 1.3-2.2 mph (2.1-3.5 km/h).

The Ford LGT125 garden tractor was equipped with 16x6.50-8 front tires and 23x8.50-12 rear tires. The wheelbase is 46 inches (1160 mm). The tractor is compatible with 42" or 50" mid-mount mower decks with cutting height of 1.5-4.5 in (38-115 mm), 48" front blade, 42" front-mount single-stage snow blower, and front end loader with a lift capacity to full height of 350 lbs (160 kg).

Engine
Engine Model Kohler K301AS
Engine Type 4-stroke, air-cooled gasoline
Number of Cylinders Single
Displacement, cu in (L) 29.1 (0.476)
Engine Bore, in (mm) 3.38 (86.0)
Engine Stroke, in (mm) 3.25 (83.0)
Maximum Engine Power, hp (kW) 12.0 (8.9)
Rated Engine Speed, rpm 3600
Compression 6.0:1
Fuel System Carburetor
Carburetor Model Kohler/Walbro
Carburetor Type Fixed main jet or adjustable main jet
Lubrication System Splash type
Cooling System Forced-air
Ignition System Battery
Valve Clearance (Intake), in (mm) 0.008-0.010 (0.20-0.25)
Valve Clearance (Exhaust), in (mm) 0.017-0.019 (0.43-0.48)
Spark Plug Type Champion RH10
Spark Plug Size, in (mm) 0.553 (14.0)
Spark Plug Gap, in (mm) 0.026 (0.65)
Fuel Tank Capacity, gal (L) 2.0 (7.6)
Oil Capacity, qts (L) 2.3 (2.1)

Electrical System
Electrical System Rating, Volts 12
Charging System Generator
Starter Type Electric
Number of Batteries 1
Battery Voltage, Volts 12
Electric Ground Negative

Power Take-Off
Front PTO Operational Type Independent
Front PTO Clutch Electric
Front PTO Speed, rpm 3600

Transmission
Transmission Type Hydrostatic
Number of Forward Gears Infinite (2-ranges)
Number of Reverse Gears Infinite (2-ranges)
Maximum Forward Speed (Low Range), mph (kph) 4.8 (7.7)
Maximum Forward Speed (High Range), mph (kph) 7.1 (11.4)
Maximum Reverse Speed (Low Range), mph (kph) 1.3 (2.1)
Maximum Reverse Speed (High Range), mph (kph) 2.2 (3.5)


Wheels and Tires
Drive Wheels 2WD 4x2
Steering Configuration Front steer
Steering System Manual
Brakes Type Integral mechanical band
Front Tire Size 16x6.50-8
Rear Tire Size 23x8.50-12

Dimensions and Weight
Wheelbase, in (mm) 46 (1160)
Length, in (mm) 71.5 (1810)
Height, in (mm) 42 (1060)
Overall Width, in (mm) 41 (1040)
Ground Clearance (Front Mounts), in (mm) 5.8 (145)
Ground Clearance (Frame), in (mm) 14 (355)
Weight, lb (kg) 790 (359)

Front End Loader
Maximum Lift Height (to pin), in (mm) 67 (1700)
Clearance, Dumped Bucket, in (mm) 51 (1290)
Reach At Ground, in (mm) 20 (510)
Lift to Full Height (at pin), lb (kg) 350 (160)
Bucket Width (Std), in (mm) 38 (960)
Bucket Width (Opt), in (mm) 48 (1215)

42" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 3
Cutting Width, in (mm) 42 (1060)
Cutting Height, in (mm) 1.5-4.5 (38-115)
Overall Width, in (mm) 52 (1315)
Lift System Manual

50" Mower Deck
Mower Deck Type Mid-mount
Number of Blades 3
Cutting Width, in (mm) 50 (1270)
Cutting Height, in (mm) 1.5-4.5 (38-115)
Overall Width, in (mm) 60 (1520)
Lift System Manual

42" Snowblower
Snowblower Type Front-mount, single-stage/two-stage
Clearing Width, in (mm) 42 (1060)
Overall Width, in (mm) 44 (1110)
Lift System Manual

Front Blade
Blade Type Front-mount
Width, in (mm) 48 (1215)
Lift Height, in (mm) 7 (177)
Cutting Depth, in (mm) 2 (51)
Lift System Manual
Angle Manual
