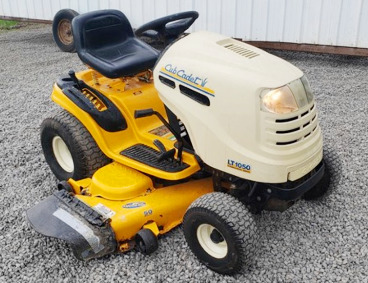

Cub Cadet LT1050 Lawn Tractor
The
Cub Cadet LT1050 is a 2-wheel drive lawn tractor from LT1000 series. This model
was manufactured between 2005 and 2008. The Cub Cadet LT-1050 driveline
components: Kohler Command CV730 4-cycle OHV V-Twin cylinder air-cooled gasoline
engine and Hydro-Gear 0510 hydrostatic transmission with infinite forward and
reverse gears.
A 44 cubic inches (725 cc) engine has a cylinder bore of 3.27" (83 mm),
piston stroke of 2.65" (67 mm), and rated power of 25 hp (18.4 kW) with
a max torque of 54.1 Nm (39.9 lb-ft) at 2800 rpm.
The maximum forward speed - 5.2 mph (8.4 km/h), maximum reverse speed -
2.3 mph (3.7 km/h). The Cub Cadet LT1050 is equipped with 15x6.00-6
front tyres and 20x10.00-8 rear tyres. The wheelbase is 46 in (1160 mm).
Compatible attachments for the tractor: a 50" mid-mount 3-blade mower
deck, 46" front-mount blade, 42" front-mount two-stage snowblower with
manual lift system.
| Engine Model |
Kohler Command CV730 |
| Engine Type |
4-cycle gasoline, OHV, V-Twin air-cooled |
| Number of Cylinders |
2 |
| Displacement, cu.in (L) |
44.0 (0.725) |
| Engine Bore, in (mm) |
3.27 (83.0) |
| Engine Stroke, in (mm) |
2.65 (67.0) |
| Rated Engine Power, hp (kW) |
25.0 (18.4) |
| Rated Engine Speed, rpm |
3600 |
| Maximum Torque, Nm (ft-lbs) |
54.1 (39.9) |
| Torque Speed, rpm |
2800 |
| Compression |
9.0:1 |
| Fuel System Type |
Carburetor |
| Carburetor Model |
Nikki or Keihin |
| Carburetor Type |
Fixed main jet |
| Fuel Pump |
Pulse type |
| Fuel Filter |
In-line |
| Governor Type |
Mechanical |
| Lubrication System |
Full pressure |
| Oil filter |
Full-flow type |
| Air Cleaner |
Replaceable, paper element |
| Spark Plug Type |
Champion RC12YC |
| Spark Plug Gap, in (mm) |
0.030 (0.76) |
| Intake Valve Clearance, in (mm) |
0.0015-0.0030 (0.038-0.076) |
| Exhaust Valve Clearance, in (mm) |
0.0020-0.0035 (0.050-0.088) |
| Fuel Tank Capacity, gal (L) |
3.5 (13.2) |
| Oil Capacity, qts (L) |
2.0 (1.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator 16A |
| Starter Type |
Electric |
| Battery Voltage, Volts |
12 |
| Battery Rating |
235 CCA |
| Electric Ground |
Negative |
| PTO Location |
Front |
| PTO Operational Type |
Independent |
| PTO Clutch |
Electric |
| Transmission Model |
Hydro-Gear 0510 |
| Transmission Type |
Hydrostatic |
| Forward/Reverse Gears |
Infinite |
| Overall Transaxle Reduction |
22.2:1 |
| Axle Shaft Diameter, in (mm) |
0.75 (19.1) |
| Oil Capacity, qts (L) |
2.40 (2.25) |
| Maximum Forward Speed, mph (kph) |
5.2 (8.4) |
| Maximum Reverse Speed, mph (kph) |
2.3 (3.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front steer |
| Steering System |
Manual |
| Brakes Type |
Dry disc |
| Front Tire Size |
15x6.0-6 |
| Rear Tire Size |
20x10.0-8 |
| Wheelbase, in (mm) |
46 (1160) |
| Length, in (mm) |
68 (1720) |
| Height, in (mm) |
43 (1090) |
| Overall Width, in (mm) |
54 (1370) |
| Ground Clearance, in (mm) |
4.5 (115) |
| Turning Radius, in (mm) |
18 (465) |
| Weight, lb (kg) |
525 (240) |
| Mower Deck Type |
Mid-mount |
| Number of Blades |
3 |
| Cutting Width, in (mm) |
50 (1265) |
| Cutting Height, in (mm) |
1.5-4 (30-100) |
| Cut Positions |
6 |
| Lift System |
Mechanical |
| Snowblower Model |
190-673 |
| Snowblower Type |
2-Stage, Front-mount |
| Clearing Width, in (mm) |
42 (1060) |
| Lift System |
Mechanical |
| Blade Model |
190-674 |
| Blade Type |
Front-mount |
| Width, in (mm) |
42 (1060) |
| Height, in (mm) |
16 (400) |
| Lift System |
Mechanical |
