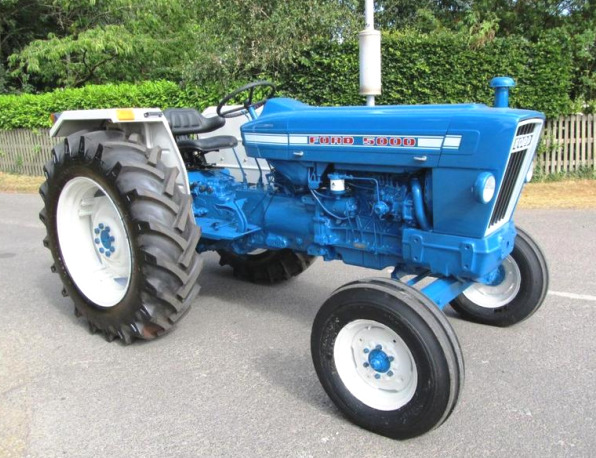

Ford 5000 Tractor
The Ford 5000 is a two-wheel drive row-crop tractor. This model was manufactured between 1965 and 1976.
The Ford 5000 driveline consists of a Ford 4-cyl. diesel or gasoline engine, and 8x2 sliding gear or 10x2 full powershift transmission.
A 3.8 cubic inches diesel engine power is 69 hp (51.5 kW) and max. torque is 182 ft-lb (247 Nm) at 1400 rev/min.
Max. forward speed - 16.8 mph (27 km/h), max. reverse speed - 8.1 kph (13 km/h).
The open center hydraulic system used a gear pump with a flow of 6.0 gpm (22.7 lpm).
The hydraulic pressure is 2500 psi (173 bar).
The rear tire size: 12.4x38, and front tire size: 7.5x16.
The wheelbase is 87.5 in (2220 mm) for standard models, and 96 in (2430 mm) for
row-crop models.
| Engine Model |
Ford |
| Engine Type |
Vertical, 4-cylinder, water cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
233 (3.8) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.20 (107.0) |
| Rated Engine Power, hp (kW) |
69.0 (51.5) |
| Rated Engine Speed, rpm |
2100 |
| Compression |
16.5:1 |
| Firing Order |
1-3-4-2 |
| Lubrication |
Pressure |
| Air Cleaner |
Oil washed wire mesh with centrifugal precleaner |
| Oil Filter |
Full flow replaceable paper element |
| Fuel Filter |
Replaceable nylon gauze element and paper element |
| Fuel Tank Capacity, gal (L) |
20.0 (75.7) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
15.3 (14.5) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
128 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| Engine Model |
Ford |
| Engine Type |
Vertical, 4-cylinder, water cooled gasoline |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
233 (3.8) |
| Engine Bore, in (mm) |
4.20 (107.0) |
| Engine Stroke, in (mm) |
4.20 (107.0) |
| Rated Engine Power, hp (kW) |
69.0 (51.5) |
| Rated Engine Speed, rpm |
2100 |
| Compression |
8.0:1 |
| Firing Order |
1-3-4-2 |
| Intake Valve Clearance (Intake/Exhaust) |
0.015 (0.381) / 0.018 (0.457) |
| Lubrication |
Pressure |
| Air Cleaner |
Oil washed wire mesh |
| Oil Filter |
Full flow replaceable paper element |
| Fuel Filter |
Edge type in sediment bowl |
| Cooling Temperature Control |
Thermostat |
| Fuel Tank Capacity, gal (L) |
20.0 (75.7) |
| Oil Capacity, qts (L) |
8.0 (7.6) |
| Coolant Capacity, qts (L) |
15.3 (14.5) |
| Electrical System Rating, Volts |
12 |
| Battery Rating, A/h |
80 |
| Charging System |
Generator |
| Charging Rating, Amps |
22 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
60.4 (45.0) |
| PTO Speed, rpm |
540, 1000 |
| PTO / Engine Speed, rpm |
540/1900, 1000/2060 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/2R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Dry disc |
| Oil Capacity, qts (L) |
10.8 (10.2) |
| Maximum Forward Speed, mph (kph) |
16.8 (27.0) |
| Maximum Reverse Speed, mph (kph) |
8.1 (13.0) |
| Transmission Type |
Select-O-Speed |
| Gearbox Type |
10F/2R, Full power shift |
| Number of Forward Gears |
10 |
| Number of Reverse Gears |
2 |
| Clutch Type |
Hydraulic wet disc |
| Oil Capacity, qts (L) |
11.8 (11.2) |
| Maximum Forward Speed, mph (kph) |
16.4 (26.4) |
| Maximum Reverse Speed, mph (kph) |
4.6 (7.4) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System (Std) |
Power assist |
| Steering System (Row Crop) |
Hydrostatic power |
| Brake Type |
Differential mechanical wet disc |
| Front Tire Size (Std) |
6.0-16 |
| Rear Tire Size (Std) |
12.04.1938 |
| Front Tire Size (Opt) |
07.05.2016 |
| Rear Tire Size (Opt) |
13.06.1938 |
| Front Tread, in (mm) |
52.0-80.0 (1320-2030) |
| Front Tread (Std), in (mm) |
56.0-88.0 (1420-2230) |
| Rear Tread (Row Crop), in (mm) |
56.0-80.0 (1420-2030) |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
6.0 (22.7) |
| Steering Flow, gpm (Lpm) |
4.5 (17.1) |
| Hydraulic Pressure, Bar (psi) |
173 (2500) |
| Steering Pressure, Bar (psi) |
73.0 (1050) |
| Hydraulic System Capacity, gal (L) |
8.7 (32.9) |
| 3-Point Hitch Category |
02.01.2020 |
| Rear Arms |
Flexible link ends |
| Wheelbase (Std), in (mm) |
87.5 (2220) |
| Wheelbase (Row Crop), in (mm) |
96 (2430) |
| Length (Std), in (mm) |
141.6 (3590) |
| Length (Row Crop), in (mm) |
149 (3780) |
| Overall Width, in (mm) |
68.5 (1730) |
| Ground Clearance, in (mm) |
14.25 (360) |
| Weight (Std), lb (kg) |
5740 (2600) |
| Weight (Row Crop), lb (kg) |
6250 (2835) |
| Weight (Operating), lb (kg) |
5865 (2660) |
| Weight (Ballasted), lb (kg) |
9700 (4400) |
