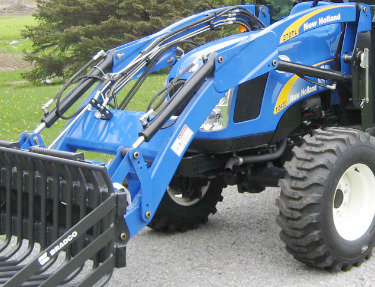

New Holland 270TL Front End Loader

The New Holland 270TL loader is used for New Holland Boomer 4055, 4060 tractors. The loader is equipped with double acting bucket and lift hydraulic cylinders.

The New Holland 270TL has a lift capacity (at pin) of 2500 lbs (1134 kg) to a max height of 112.3" (2852 mm), and boom breakout force of 5000 lbs (2268 kg). The bucket dump clearance is 85.2" (2165 mm) at max dump angle of 49 degrees. The raising time is 4.1 seconds from ground line to maximum height, and bucket dumping time is 4 seconds.

Compatible buckets for the New Holland 270TL loader: 60" (1520 mm) heavy-duty material bucket with nominal heaped capacity of 0.47 cu.yd (0.36 cu.m), and 68" (1720 mm) heavy-duty material bucket with nominal heaped capacity of 0.53 cu.yd (0.41 cu.m).

Compatible Tractors
Tractor Models New Holland Boomer 4055, 4060
Front Tires 9.5x16
Rear Tires 14.9x24
Hydraulic System Flow, gpm (lpm) 11.6 (44.0)

Loader
Loader Model NH 270TL
Leveling System Non Self Leveling
Weight (w/o Bucket), lbs (kg) 820 (372)

60" Heavy-Duty Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, cu. yd (m3) 0.38 (0.29)
Heaped Capacity, cu. yd (m3) 0.47 (0.36)

68" Heavy-Duty Material Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu. yd (m3) 0.43 (0.33)
Heaped Capacity, cu. yd (m3) 0.53 (0.41)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 112.3 (2852)
Clearance with Bucket Dumped, in (mm) 85.2 (2165)
Clearance with Level Bucket, in (mm) 104.4 (2652)
Reach at Maximum Lift Height, in (mm) 32 (813)
Digging Depth, in (mm) 4.9 (124)
Maximum Dump Angle, degrees 49
Maximum Rollback Angle, degrees 39

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 2500 (1134)
Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) 1830 (830)
Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) 3500 (1588)
Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) 2213 (1003)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 5000 (2268)
Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) 3114 (1412)

Cycle Times
Loader Raise, second 4,1
Loader Lower, second 3,9
Bucket Dump, second 4,0
Bucket Rollback, second 3,2
