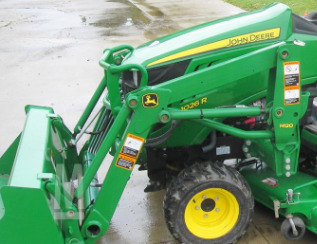

John Deere H120 Front End Loader

The John Deere H120 loader is designed for John Deere 1025R, 1023E, 1026R tractors. The front end loader has a non self leveling system, double-acting lifting cylinders, and double-acting bucket cylinders.

The John Deere H120 loader has a lifting capacity (at bucket pin) of 319 kg (703 lbs) to full height of 1809 mm (71.2 in), and boom breakout force of 782 kg (1725 lbs). A full dump clearance with a 40.1 degree maximum dump angle is 1371 mm (54 in).

The estimated cycle times are 4 seconds lifting to full height, and 5.7 (without regen) or 2.2 (with regen) seconds full bucket dumping. The bucket of John Deere H120 loader has a width of 1250 mm (49 in), rated capacity of 0.27 m3 (9.3 cu.ft), and weight of 70 kg (155 lbs).

Compatible Tractors
Tractor Models John Deere 1025R, 1023E, 1026R
Front Tires 18x8.5-10 4PR R4
Rear Tires 26x12.00-12 4PR R4
Wheel Base 1450 mm (57 in)
Pump Capacity 13.5 lpm (3.5 gpm)
Rated Pressure 137 bar (1987 psi)

Loader
Loader Model JD H120 Loader
Leveling System Non-Self Leveling
Weight 246.1 kg (541.5 lbs)

Standard Material Bucket
Bucket Width 1250 mm (49 in)
Capacity 0.27 m3 (9.3 cu.ft)
Weight 70 kg (155 lbs)

Loader Dimensions
Maximum Lift Height 1809 mm (71.2 in)
Maximum Lift Height under Bucket Level 1653 mm (65.1 in)
Clearance with Bucket Dumped 1371 mm (54 in)
Reach at Maximum Height 571 mm (22.5 in)
Reach at Bucket on Ground Level 1176 mm (46.3 in)
Dump Angle 40.1 degree
Rollback Angle 31.2 degree
Dump Angle (at Ground) 114 degree
Overall Length 2600 mm (103.6 in)
Digging Depth 101 mm (4 in)


Operating Data
Lift Capacity to Full Height at Pivot 319 kg (703 lbs)
Lift Capacity to Full Height at 19.7" (500 mm) Ahead of Pivot 232 kg (512 lbs)
Lift Capacity to 59" (1500 mm) Height at Pivot 331 kg (729 lbs)
Lift Capacity to 59" (1500 mm) Height at 19.7" (500 mm) Ahead of Pivot 262 kg (578 lbs)
Boom Breakout Force at Pivot 782 kg (1725 lbs)
Boom Breakout Force at 19.7" (500 mm) Ahead of Pivot 595 kg (1311 lbs)
Bucket Rollback Force at Maximum Height 763 kg (1682 lbs)
Bucket Rollback Force at 59" (1500 mm) Lift Height 789 kg (1739 lbs)
Bucket Rollback Force at Ground-Level Line 867 kg (1911 lbs)

Cycle Times
Loader Raise 4.0 seconds
Loader Lower 2.5 seconds
Bucket Dump (without regen) 5.7 seconds
Bucket Dump (with regen) 2.2 seconds
Bucket Rollback 3.5 seconds
