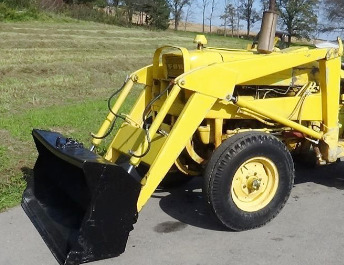

Ford 730 Front End Loader

The Ford 730 loader is designed for Ford 2000, 3000, 3610, 3600, 4100, and 4110 tractors. The loader is equipped with double acting hydraulic boom and bucket cylinders.

The 61.5" standard material bucket has a rated capacity of 16 cubic foot (0.46 m3) and weight of 410 lb (186 kg). The 73.2" light material bucket weight is 365 lb (165 kg), and heaped capacity is 20.3 cubic foot (0.58 m3).

The Ford 730 front end loader has a lifting capacity of 2240 lb (2000, 3000, 4110 tractors) or 2350 lb (3610, 4100 tractors), and bucket's breakout force of 3385 lb (2000, 3000, 4110 tractors) or 3550 lb (3610, 4100 tractors). The maximum lift height is 125" (3170 mm) for all tractors. A full dump clearance with a 42-degree max dump angle is 103" (2610 mm). The rated cycle times are 3.6 seconds lifting to maximum height, and 1.9 seconds full bucket dumping.

Compatible Tractors
Tractor models Ford 2000, 3000, 3600, 3610, 4100, 4110
Front tires 6.00x16
Rear tires 13.6x24
Hydraulic system flow, gpm (lpm) 4.0-8.5 (15.2-32.3)
Hydraulic pressure, bar (psi) 152 (2200)

Loader
Loader model Ford 730
Attachment control type Hydraulic
Lift cylinder (number and type) 2, Double action
Lift cylinder length (extended/retracted), in (mm) 76/42.7 (1925/1080)
Lift cylinder stroke, in (mm) 33.3 (843)
Lift cylinder diameter (piston/rod), in (mm) 2/1.5 (50.5/38)
Bucket cylinder (number and type) 2, Double action
Bucket cylinder length (extended/retracted), in (mm) 51.4/31.3 (1300/792)
Bucket cylinder stroke, in (mm) 20.1 (510)
Bucket cylinder diameter (piston/rod), in (mm) 2/1,25 (50.5/31.5)
Weight, lbs (kg) 985 (445)
Counterweight, lbs (kg) 2000 (900)

61.5" Standard Material Bucket
Width, in (mm) 61.5 (1560)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 23.3 (590)
Capacity (Struck), cu.ft (m3) 13.6 (0.39)
Capacity (Heaped), cu.ft (m3) 15.0 (0.43)
Weight, lbs (kg) 360 (163)

67.5" Standard Material Bucket
Width, in (mm) 67.5 (1710)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 21.1 (535)
Capacity (Struck), cu.ft (m3) 13.5 (0.38)
Capacity (Heaped), cu.ft (m3) 16.0 (0.46)
Weight, lbs (kg) 410 (186)


Light Material Bucket
Width, in (mm) 73.2 (1850)
Inside Height, in (mm) 26.8 (678)
Depth, in (mm) 25.5 (645)
Capacity (Struck), cu.ft (m3) 16.9 (0.48)
Capacity (Heaped), cu.ft (m3) 20.3 (0.58)
Weight, lbs (kg) 365 (165)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 125 (3170)
Reach at maximum height (Ford 2000, 3000), in (mm) 17.3 (438)
Reach at maximum height (Ford 3610, 4100, 4110), in (mm) 19.5 (490)
Clearance, bucket dumped, in (mm) 103 (2610)
Maximum dumping angle, degrees 42
Maximum digging depth, in (mm) 4 (101)
Reach, bucket on ground (Ford 2000, 3000), in (mm) 67.0 (1695)
Reach, bucket on ground (Ford 3610, 4100), in (mm) 62.8 (1590)
Reach, bucket on ground (Ford 4110), in (mm) 62.4 (1580)
Rollback angle, degrees 21

Operating Data
Lift capacity to maximum height (Ford 2000, 3000, 4110), lbs (kg) 2240 (1020)
Lift capacity to maximum height (Ford 3610, 4100), lbs (kg) 2350 (1070)
Breakout force at pivot pin (Ford 2000, 3000, 4110), lbs (kg) 3385 (1540)
Breakout force at pivot pin (Ford 3610, 4100), lbs (kg) 3550 (1610)

Cycle Times
Raising time to full height, sec 3,6
Lowering time, sec 1,8
Bucket dump time, sec 1,9
