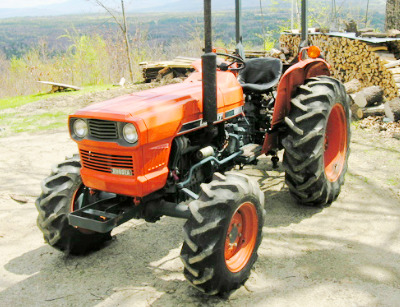

Kubota L345 Tractor

The Kubota L345 is a two-wheel drive (L345F) or four-wheel drive (L345DT) compact utility tractor. This model was manufactured between 1978 and 1985. The components of Kubota L345 driveline system: a 90.7 cu.in (1.5 L) Kubota V1501-A vertical 4-cycle four cylinder water-cooled diesel engine and sliding gear transmission with 8 forward and 2 reverse gears.

The engine has a cylinder bore of 3.01" (76 mm), piston stroke of 3.23" (82 mm), and rated power of 34 hp (25.5 kW). Max. forward speed - 13.7 mph (22 km/h), maximum reverse speed - 6.7 mph (10.8 km/h).

The open center hydraulic system used a gear pump with rated fluid flow of 6.4 gal/min (24.2 l/min). The hydraulic pressure is 155 bar (2250 psi). The Kubota L345 was equipped with a manual or power assist steering, wet disc brakes, 6.00x16 front tires, and 13.6x28 rear tires. The wheelbase is 76.6 in (1940 mm). The tractor is compatible with Kubota L1720 loader with lift capacity to maximum height of 1495 lbs (680 kg).

Engine
Engine Model Kubota V1501-A
Engine Type Vertical, 4-Cycle, Four-Cylinder Diesel
Number of Cylinders 4
Displacement, cu in (L) 90.7 (1.487)
Engine Bore, in (mm) 3.01 (76.0)
Engine Stroke, in (mm) 3.23 (82.0)
Aspiration Natural
Rated Engine Power, hp (kW) 34.0 (25.5)
Rated Engine Speed, rpm 2800
Slow Idle Speed, rpm 800-850
High Idle Speed, rpm 2950
Firing Order 1-3-4-2
Fuel Injection Timing (BTDC), deg 25
Fuel Injection Pressure, MPa (psi) 14.7 (2135)
Fuel Tank Capacity, gal (L) 9.2 (34.8)
Oil Capacity, qts (L) 9.6 (9.1)
Coolant Capacity, qts (L) 7.4 (7.0)
Electrical System Rating, Volts 12

Power Take-Off
PTO Operational Type Live
PTO Horsepower, hp (kW) 29.0 (21.6)
Rear PTO Speeds, rpm 540

Transmission
Transmission Type Sliding gear
Gearbox Type 8F/2R
Number of Forward Speeds 8
Number of Reverse Speeds 2
Clutch Type Dry disc
Oil Capacity, qt (L) 23.2 (22.0)
Maximum Speed (Forward), mph (kph) 13.7 (22.0)
Maximum Speed (Reverse), mph (kph) 6.7 (10.8)


Wheels and Tires
Drive Wheels 2WD/4WD (L345DT)
Steering Configuration Front Steer
Steering System Manual / Power assist (Opt)
Brakes Type Wet disc
Front Tire Size 6.00-16
Rear Tire Size 13.6-28

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 6.4 (24.2)
Hydraulic Pressure, Bar (psi) 155 (2250)
3-Point Hitch Category 1
Draft Sensing or Lift Control Position and draft control
Standard Lift Capacity at lift pin, lb (kg) 2030 (920)

Dimensions and Weight
Wheelbase, in (mm) 76.6 (1940)
Length, in (mm) 132.9 (3370)
Height, in (mm) 81.5 (2070)
Overall Width, in (mm) 58.7 (1490)
Ground Clearance, in (mm) 14 (345)
Operating Weight, lb (kg) 3300 (1495)
