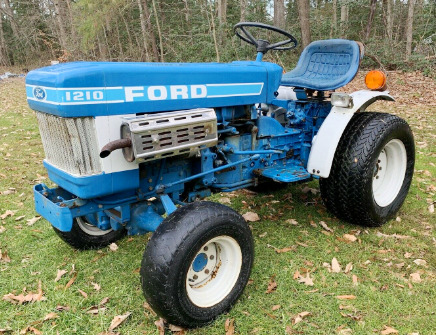

Ford 1210 Tractor

The Ford 1210 is a 2-wheel drive or 4-wheel drive compact utility tractor from Ten Compact series. This model was manufactured by Shibaura built between 1983 and 1986. The Ford 1210 is powered by 53.6 cu.in (0.88 L) Shibaura S723 3-cylinder liquid cooled diesel engine with a maximum power of 16.1 Hp (11.9 kW).

The Ford 1210 is fitted with 3 types of transmission. Type 1: 10x2 unsynchronized transmission with high and low sliding gears. Type 2: 15x3 creeper transmission. Type 3: 2-range hydrostatic transmission with infinite forward and reverse gears. Max. forward speed - 10.2 mph (16.4 kph), reverse speed - 10.2 mph (16.4 kph).

The open center hydraulic system used a gear pump with rated fluid flow of 4.3 gal/min (16.5 l/min). The hydraulic pressure is 127 bar (1850 psi). The Ford 1210 was equipped with 4.00-12 (2WD), 5.00-12 (4WD), or 20x8.0-10 (Turf) front tires, and 8.00-16 or 29x12.0-15 (Turf) rear tires. The wheelbase is 55.1" (1390 mm).

Compatible attachments for the tractor: 48", 60" mid-mount 3-blade mower decks, 48" rear-mount 3-blade mower deck with hydraulic lift, 48" rear-mount two-stage snowblower, Ford 768A loader with lift capacity to full height of 530 lbs (240 kg), and Ford 757A backhoe with max digging depth of 76.5" (1940 mm).

Engine
Engine Model Shibaura S723
Engine Type 3-cylinder liquid cooled diesel
Number of Cylinders Three
Displacement, cu in (L) 53.6 (0.879)
Engine Bore, in (mm) 2.83 (72.0)
Engine Stroke, in (mm) 2.83 (72.0)
Aspiration Natural
Rated Engine Power, hp (kW) 16.1 (11.9)
Rated Engine Speed, rpm 2700
Low Idle Speed, rpm 750-850
High Idle Speed, rpm 2900
Compression 24:1
Firing Order 1-2-3
Air Cleaner Dry type
Pre-Heating Glow plugs
Valve Clearance, in (mm) 0.008 (0.20)
Valve Seat Angle, degrees 45
Injection Timing (Static BTDC), degrees 24
Injection Opening Pressure, MPa (psi) 118 (1705)
Fuel Tank Capacity, gal (L) 4.8 (18.2)
Oil Capacity, qts (L) 3.5 (3.3)
Coolant Capacity, qts (L) 2.2 (2.3)
Electrical System Rating, Volts 12
Charging System Alternator
Alternator Rating, Amps 35

Power Take-Off
Rear PTO Type (Gear Transmission) Transmission
Rear PTO Type (Hydrostatic Transmission) Live
Mid PTO Type (Hydrostatic Transmission) Independent
Front PTO Type Independent (Opt)
PTO Horsepower, hp (kW) 13.5 (10.1)
Rear PTO Speed, rpm 540
Rear PTO / Engine Speed, rpm 540/2570
Mid PTO Speed, rpm 1000
PTO Clutch Electric

Standard Transmission
Transmission Type Unsynchronized gear
Gearbox Type 10F/2R, High/Low sliding gears
Number of Forward Gears 10
Number of Reverse Gears 2
Clutch Type Dry Disc
Clutch Disc Diameter, in (mm) 7.27 (184)
Oil Capacity, qts (L) 17.0 (16.1)
Maximum Forward Speed, mph (kph) 9.8 (15.9)
Maximum Reverse Speed, mph (kph) 5.4 (8.6)

Optional Transmission
Transmission Type Hydrostatic
Number of Forward Gears Infinite (2-range)
Number of Reverse Gears Infinite (2-range)
Maximum Forward Speed, mph (kph) 10.2 (16.4)
Maximum Reverse Speed, mph (kph) 6.2 (10.0)


Optional Transmission
Transmission Type Creeper
Gearbox Type 15F/3R
Number of Forward Gears 15
Number of Reverse Gears 3
Maximum Forward Speed (Creeper), mph (kph) 0.4 (0.6)
Maximum Reverse Speed (Creeper), mph (kph) 0.2 (0.4)
Maximum Forward Speed, mph (kph) 9.8 (15.9)
Maximum Reverse Speed, mph (kph) 5.4 (8.6)

Wheels and Tires
Drive Wheels 2WD/4WD
Steering Configuration Front Steer
Steering System Manual
Service Brake Differential mechanical drum
Front Tire Size (2WD) 4.00-12
Front Tire Size (4WD) 5.00-12
Rear Tire Size 8.00-16
Front Tire Size (Turf) 20x8.0-10
Rear Tire Size (Turf) 29x12.0-15
Front Tread (2WD), in (mm) 30.3-40.9 (760-1030)
Front Tread (4WD), in (mm) 34.6 (870)
Rear Tread, in (mm) 31-46 (780-1160)

Hydraulic System
Hydraulic System Type Open center
Implement Pump Flow, gpm (Lpm) 4.3 (16.5)
Hydraulic Pressure, Bar (psi) 127 (1850)
Hydraulic System Capacity, gal (L) 4.3 (16.1)
Draft Sensing or Lift Control Position control
3-Point Hitch Category 1
Standard Lift Capacity at lift pin, lb (kg) 880 (400)

Dimensions and Weight
Wheelbase, in (mm) 55.1 (1390)
Length, in (mm) 101 (2560)
Overall Width, in (mm) 43.3 (1090)
Height (Steering Wheel), in (mm) 50.4 (1280)
Height (ROPS), in (mm) 79.5 (2010)
Ground Clearance, in (mm) 10.4 (260)
Weight (2WD), lb (kg) 1330 (600)
Weight (4WD), lb (kg) 1440 (650)
