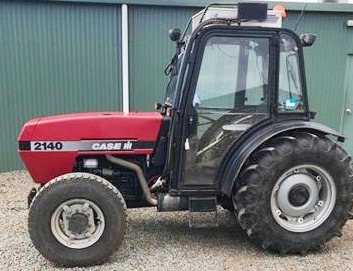

Case IH 2140 Tractor
The
Case IH 2140 is a 2-wheel drive or 4-wheel drive orchard/vineyard tractor from
2100 series. This model was manufactured by Carraro built between 1988 and 1993.
The Case IH 2140 tractor is powered by SLH 1000.4A 4-cycle 4-cylinder air-cooled
diesel engine with a max output power of 61 hp (45.2 kW) and 233 Hm (172 lb-ft)
of max torque at 1200 rpm.
The Case IH 2140 is fitted with 2 transmission options: 8x8 partially
synchronized transmission, or 12x12 partially synchronized transmission.
Max. forward and reverse speed - 18.1 mph (29.2 km/h).
The open center hydraulic system used a gear pump with a flow of 15.6
gal/min (59 l/min). The 2-wheel drive models are equipped with 7.50x16
front tires and 13.6R28 or 14.9R28 rear tires. The 8.25x16 or 7.50x18
front tires and 13.6R28 rear tires are used for tractors with 4-wheel
drive. The wheelbase is 83.1" (2110 mm) for 2WD models and 81.7" (2070
mm) for 4WD models.
| Engine Model |
SLH 1000.4A |
| Engine Type |
4-Cycle, 4-cylinder air-cooled diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
244.1 (4.00) |
| Engine Bore, in (mm) |
4.14 (105) |
| Engine Stroke, in (mm) |
4.55 (115) |
| Rated Engine Power, hp (kW) |
61.0 (45.2) |
| Rated Engine Speed, rpm |
2350 |
| Maximum Torque, Nm (ft-lbs) |
233 (172) |
| Torque Speed, rpm |
1200 |
| Compression |
17:1 |
| Firing Order |
1-3-4-2 |
| Fuel System |
Injection pump |
| Air cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
15.8 (60.0) |
| Valve Clearance, in (mm) |
0.008 (0.203) |
| Oil Capacity, qts (L) |
9.7 (9.2) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
55 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
55.0 (41.0) |
| PTO Speed, rpm |
540/750/1000 |
| PTO / Engine Speed, rpm |
540/2115 |
| PTO / Engine Speed, rpm |
750/2015 |
| PTO / Engine Speed, rpm |
1000/2105 |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
8F/8R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
38.0 (36.0) |
| Oil Capacity (4WD), qts (L) |
40.2 (38.0) |
| Maximum Forward Speed, mph (kph) |
18.1 (29.2) |
| Maximum Reverse Speed, mph (kph) |
18.1 (29.2) |
| Transmission Type |
Partially synchronized |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Oil Capacity (2WD), qts (L) |
38.0 (36.0) |
| Oil Capacity (4WD), qts (L) |
40.2 (38.0) |
| Maximum Forward Speed, mph (kph) |
18.1 (29.2) |
| Maximum Reverse Speed, mph (kph) |
18.1 (29.2) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Wet disc |
| Front Tire Size (2140V with 2WD) |
7.50x16 |
| Rear Tire Size (2140V with 2WD) |
13.6R28 |
| Front Tire Size (2140V with 4WD) |
8.25x16 |
| Rear Tire Size (2140V with 4WD) |
13.6R28 |
| Front Tire Size (2140E with 2WD) |
7.50x16 |
| Rear Tire Size (2140E with 2WD) |
14.9R28 |
| Front Tire Size (2140E with 4WD) |
7.50x18 |
| Rear Tire Size (2140E with 4WD) |
13.6R28 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
15.6 (59.0) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2/1 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin (2140V), lb (kg) |
5575 (2530) |
| Standard Lift Capacity at lift pin (2140E), lb (kg) |
5465 (2480) |
| Wheelbase (2WD), in (mm) |
83.1 (2110) |
| Wheelbase (4WD), in (mm) |
81.7 (2070) |
| Length (2140V), in (mm) |
137.4 (3480) |
| Length (2140E), in (mm) |
138 (3500) |
| Height (Hood), in (mm) |
51.3 (1300) |
| Height (ROPS), in (mm) |
97.8 (2480) |
| Overall Width (2140V), in (mm) |
47.8 (1210) |
| Overall Width (2140E), in (mm) |
53.7 (1360) |
| Ground Clearance (2WD), in (mm) |
13.6 (340) |
| Ground Clearance (4WD), in (mm) |
9.9 (250) |
| Weight (2140V with 2WD), lb (kg) |
4365 (1980) |
| Weight (2140V with 4WD), lb (kg) |
4720 (2140) |
| Weight (2140E), lb (kg) |
4785 (2170) |
