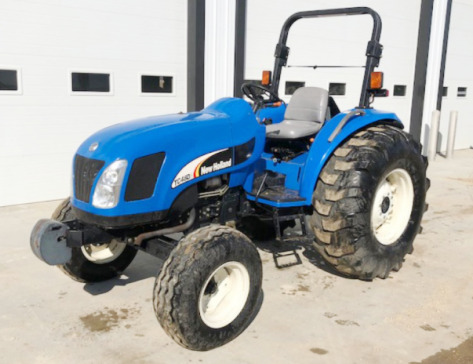

New Holland TC48DA Tractor
The
New Holland TC48DA is a Boomer TC-A series compact utility tractor. This model
was manufactured from 2003 to 2008. The New Holland TC48DA tractor is equipped
with a Shibaura N844L four cycle 4-cylinder overhead valve water-cooled diesel
engine.
A 135.1 cubic inches (2.22 L) engine has a cylinder bore of 3.31" (84
mm), piston stroke of 3.94" (100 mm), and rated power of 56.8 hp (42.4
kW). The New Holland TC48DA tractor's transmission consists of a dry
clutch and synchronized shuttle shift gearbox with 12 forward and 12
reverse gears.
The maximum travel speed (forward/reverse): 18.6 mph (29.9 km/h) and
19.5 mph (29.9 km/h). The open center hydraulic system includes a gear
pump with a flow rate of 12 gallons per minute (45.3 liters per minute).
The main relief pressure is 176 bar (2550 psi). The 2WD models are
equipped with 9.5Lx15 front tires and 14.9x24 rear tires. The 8.00x16 or
11Lx15SL front tires and 14.9x28 or 18.4x24 rear tires are used for 4WD
tractors. The wheelbase is 74.8" (1890 mm). The NH TC48DA is compatible
with a New Holland 18LA front end loader with lift capacity to max
height of 2500 lbs (1134 kg), and New Holland 759C backhoe with 2-ft
flat digging depth of 114" (2890 mm).
| Engine Model |
Shibaura N844L |
| Engine Type |
Diesel, four cycle, water-cooled, in-line overhead valve |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
135,1 (2,22) |
| Engine Bore, in (mm) |
3,31 (84,0) |
| Engine Stroke, in (mm) |
3,94 (100,0) |
| Rated Engine Power, hp (kW) |
54,7 (40,8) |
| Maximum Engine Power, hp (kW) |
56,8 (42,4) |
| Rated Engine Speed, rpm |
2600 |
| Compression Ratio |
22.5:1 |
| Firing Order |
1-3-4-2 |
| Fuel Pump Type |
In-Line |
| Combustion Type |
Swirl chamber |
| Governor |
Centrifugal all-speed control |
| Fuel Tank Capacity, gal (L) |
13,5 (51,2) |
| Oil Capacity, qts (L) |
8,7 (8,2) |
| Coolant Capacity, qts (L) |
3,8 (3,6) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
40,0 (29,8) |
| Rear PTO Speed, rpm |
540 |
| Transmission Type |
Synchronized Shuttle Shift |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
18,6 (29,9) |
| Maximum Reverse Speed, mph (kph) |
19,5 (31,4) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Differential mechanical wet disc |
| Front Tire Size (2WD) |
9.5L-15 |
| Rear Tire Size (2WD) |
14.9-24 |
| Front Tire Size (4WD) |
8.00-16 |
| Rear Tire Size (4WD) |
14.9-28 |
| Front Tire Size (Industrial) |
11L-15SL |
| Rear Tire Size (Industrial) |
18.4-24R4 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12,0 (45,3) |
| Steering Pump Flow, gpm (Lpm) |
5,52 (20,9) |
| Number of Standard Remote Valves |
3 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24-in (600mm) behind pin, lb (kg) |
3465 (1575) |
| Wheelbase, in (mm) |
74,8 (1890) |
| Length, in (mm) |
137,3 (3480) |
| Height, in (mm) |
91,1 (2310) |
| Overall Width, in (mm) |
64,4 (1630) |
| Weight, lb (kg) |
4215 (1957) |
