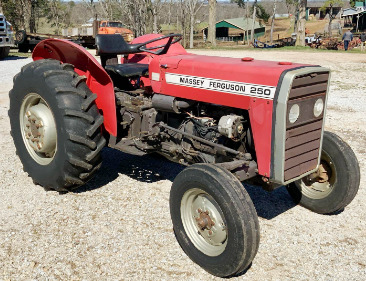

Massey Ferguson 250 Tractor
The
Massey Ferguson 250 utility tractor was manufactured from 1983 to 1986. The MF
250 tractor is equipped with a Perkins AD3.152 4-stroke 3-cylinder direct
injection water-cooled diesel engine.
A 152 cubic inches engine has a cylinder bore of 3.6" (91 mm), piston
stroke of 5" (127 mm), and rated power of 44 hp (32.6 kW) at 2250 rpm.
The transmission includes a dry clutch and gearbox with 8 forward and 2
reverse gears. Max. forward speed - 20.6 mph (33.1 km/h), max. reverse
speed - 8.5 mph (13.7 km/h). The open center hydraulic system used a
gear pump with a flow of 9 gpm (34.2 lpm).
The hydraulic pressure is 179 bar (2595 psi). The Massey Ferguson 250 was
equipped with a power assist steering system, differential mechanical
wet disc brakes, 6.50x16 front tires, and 13.6x28 rear tires. The
wheelbase is 74.5 inches (1890 mm).
| Engine Model |
Perkins AD3.152 |
| Engine Type |
4-Stroke, 3-cylinder, direct injection diesel |
| Number of Cylinders |
3 |
| Displacement, cu.in (L) |
152 (2.50) |
| Engine Bore, in (mm) |
3.60 (91.0) |
| Engine Stroke, in (mm) |
5.00 (127.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
44.0 (32.6) |
| Rated Engine Speed, rpm |
2250 |
| Compression |
18.5:1 |
| Firing Order |
1-2-3 |
| Fuel System Type |
Direct injection |
| Fuel Injection Pump |
CAV DPA |
| Fuel Filter |
Paper element |
| Oil Pump Type |
Rotor type |
| Air Cleaner |
Dual dry element |
| Fuel Tank Capacity, gal (L) |
12.7 (48.0) |
| Coolant Capacity, qts (L) |
10.5 (9.9) |
| Oil Capacity, qts (L) |
7.2 (6.8) |
| Electrical System Rating, Volts |
12 |
| Charging system |
Alternator |
| Alternator Rating, Amps |
32 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
40.0 (29.8) |
| PTO Speed, rpm |
540 |
| PTO / Engine Speed, rpm |
540/1700 |
| Transmission Type |
Gear |
| Gearbox Type |
8F/2R |
| Number of Forward Speed |
8 |
| Number of Reverse Speed |
2 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
20.6 (33.1) |
| Maximum Reverse Speed, mph (kph) |
8.5 (13.7) |
| Drive Wheels |
2WD 4x2 |
| Steering Configuration |
Front Steer |
| Steering System |
Power assist |
| Brakes Type |
Differential mechanical wet disc |
| Front Tire Size |
6.50x16 |
| Rear Tire Size |
13.6x28 |
| Front Track Width, in (mm) |
52-72 (1320-1820) |
| Rear Track Width, in (mm) |
56-84 (1420-2130) |
| Hydraulic System Type |
Open center |
| Implement Pump Type, gpm (Lpm) |
Gear |
| Implement Pump Flow, gpm (Lpm) |
9.0 (34.2) |
| Steering Pump Flow, gpm (Lpm) |
5.0 (19.0) |
| Hydraulic Pressure, Bar (psi) |
179 (2595) |
| Number of Standard Remote Valves |
1/3 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity at lift pin, lb (kg) |
3250 (1475) |
| Optional Lift Capacity at lift pin, lb (kg) |
4530 (2060) |
| Wheelbase, in (mm) |
74.5 (1890) |
| Length, in (mm) |
132.5 (3360) |
| Height (Steering Wheel), in (mm) |
58.5 (1480) |
| Overall Width, in (mm) |
74 (1870) |
| Weight (Operating), lb (kg) |
4585 (2080) |
| Weight (Ballasted), lb (kg) |
5760 (2610) |
