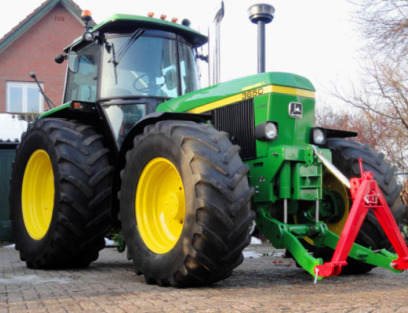

John Deere 3650 Tractor
The
John Deere 3650 utility tractor was manufactured from 1986 to 1993. The
components of JD 3650 powerline system: John Deere 6359 TL 4-stroke six-cylinder
turbocharged diesel engine and Power Synchron partial power shift transmission
with 16 forward and 8 reverse gears.
A 359 cubic inches engine power rating is 114 Hp (85,3 kW) at 2400 rpm.
Max. forward speed - 18,6 mph (30 kph), max. reverse speed - 8,5 mph
(13,7 kph). The closed center constant pressure hydraulic system used a
piston pump with rated fluid flow of 11,6 gpm (44 lpm).
The hydraulic system pressure is 2700 psi (186 bar). The four-wheel
drive John Deere 3650 tractor is equipped with 16.9x24 front tyres and
520/70x38 rear tyres. The 4WD wheelbase is 101,8 inches (2580 mm).
| Engine Model |
John Deere 6359 TL |
| Engine Type |
4 cycle, 6-cylinder turbocharged diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
359 (5,9) |
| Engine Bore, in (mm) |
4,19 (106,0) |
| Engine Stroke, in (mm) |
4,33 (110,0) |
| Rated Engine Power, hp (kW) |
114,0 (85,3) |
| Rated Engine Speed, rpm |
2400 |
| Aspiration |
Turbocharged |
| Compression |
17.4:1 |
| Fuel System |
Direct injection |
| Fuel Tank Capacity, gal (L) |
45,2 (170,3) |
| Oil Capacity, qts (L) |
12,1 (11,4) |
| Coolant Capacity, qts (L) |
20,1 (19,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
55 |
| Rear PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
104,7 (78,2) |
| Clutch Type |
Hydraulic wet disc |
| Rear PTO Speeds, rpm |
540/1000 |
| Rear PTO / Engine Speeds, rpm |
540/2178, 1000/2172 |
| Front PTO Operational Type |
Independent |
| Front PTO Speeds, rpm |
1000 |
| Front PTO / Engine Speeds, rpm |
1000/2172 |
| Transmission Model |
Power Synchron |
| Transmission Type |
16F/8R, Partial power shift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Hydraulic cerametallic dry disc |
| Maximum Speed (Forward), mph (kph) |
18,6 (30,0) |
| Maximum Speed (Reverse), mph (kph) |
8,5 (13,7) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size |
16.9x24 |
| Rear Tire Size |
520/70x38 |
| Hydraulic System Type |
Closed center constant pressure |
| Implement Pump Flow, gpm (Lpm) |
11,6 (44,0) |
| Hydraulic Pressure, Bar (psi) |
186 (2700) |
| Hydraulic Oil Capacity, gal (L) |
11,6 (44,0) |
| Rear Hitch Category |
2/3 |
| Standard Rear Lift Capacity, lb (kg) |
11620 (5270) |
| Front Hitch Category |
2 |
| Standard Front Lift Capacity, lb (kg) |
3595 (1630) |
| Optional Front Lift Capacity, lb (kg) |
6525 (2960) |
| Wheelbase, in (mm) |
101,8 (2580) |
| Length, in (mm) |
192,9 (4890) |
| Height, in (mm) |
113,4 (2880) |
| Overall Width, in (mm) |
89,4 (2260) |
| Ground Clearance, in (mm) |
13,4 (340) |
| Weight, lb (kg) |
13510 (6130) |
