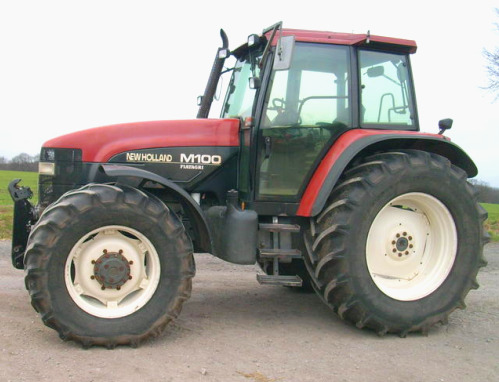

New Holland M100 Tractor

The New Holland M100 is a four-wheel drive farm tractor. This model was manufactured from 1996 to 1999. The New Holland M100 tractor is powered by Ford TC 456 4 stroke six-cylinder water cooled diesel engine with a rated power of 99.9 Hp (74.5 kW) and 432 Nm (320 lb-ft) of peak torque at 1400 rev/min.

The New Holland M100 is fitted with two transmission options: a 23x12 (46x24 with creeper) Dual Command transmission, and Range Command transmission with 31 forward and 12 reverse gears. The maximum forward speed - 24.9 mph (40 kph), max. reverse speed - 24.5 mph (39.2 kph).

The closed center hydraulic system used a piston pump with fluid flow rate of 24.7 gpm (93.5 lpm). The hydraulic pressure is 2755 psi (190 bar). The New Holland M100 was equipped with a hydrostatic steering system, differential hydraulic wet disc brakes, 14.9 R28 front tires, and 18.4 R38 rear tires. The wheelbase is 107.1 inches (2720 mm).

Engine
Engine Model Ford TC 456
Engine Type 4 stroke six-cyl. water cooled diesel
Number of Cylinders 6
Displacement, cu in (L) 457 (7,5)
Engine Bore, in (mm) 4,40 (111,8)
Engine Stroke, in (mm) 5,00 (127,0)
Aspiration Natural
Maximum Engine Power, hp (kW) 99,9 (74,5)
Rated Engine Speed, rpm 2200
Maximum Torque, Nm (ft-lbs) 432 (320)
Torque Speed, rpm 1400
Compression 17.5:1
Firing Order 1-5-3-6-2-4
Fuel Tank Capacity, gal (L) 58,2 (220,0)
Oil Capacity, qts (L) 20,0 (18,9)
Coolant Capacity, qts (L) 27,0 (25,5)
Electrical System Rating, Volts 12
Starter Motor Rating, hp (kW) 4,96 (3,7)

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 90,0 (67,1)
PTO Speeds, rpm 540/750/1000

Standard Transmission
Transmission Type Dual Command
Gearbox Type 23F/12R (46F/24R with creeper)
Gears 2-Speed powershift
Creeper Standard
Number of Forward Gears 23 (46)
Number of Reverse Gears 12 (24)
Clutch Type Hydraulic wet disc
Maximum Speed (Forward), mph (kph) 18,6 (29,7)
Maximum Speed (Reverse), mph (kph) 18,2 (29,1)


Optional Transmission
Transmission Type Range Command
Gearbox Type 31F/12R
Gears 6-Speed powershift
Number of Forward Gears 31
Number of Reverse Gears 12
Oil Capacity, qts (L) 76,9 (72,7)
Maximum Speed (Forward), mph (kph) 24,9 (40,0)
Maximum Speed (Reverse), mph (kph) 24,5 (39,2)

Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front steer
Steering System Hydrostatic
Service Brake Differential hydraulic wet disc
Front Tire Size 14.9 R28
Rear Tire Size 18.4 R38

Hydraulic System
Hydraulic System Type Closed Center
Implement Pump Flow, gpm (Lpm) 24,7 (93,5)
Steering Pressure, Bar (psi) 170 (2470)
Hydraulic Pressure, Bar (psi) 190 (2755)
3-Point Hitch Type Rear
Standard Lift Capacity at lift pin, lb (kg) 14806 (6730)

Dimensions and Weight
Wheelbase, in (mm) 107,1 (2720)
Length, in (mm) 182 (4620)
Height, in (mm) 111 (2830)
Overall Width, in (mm) 84 (2130)
Turning Radius, in (mm) 181 (4610)
Shipping Weight, lb (kg) 11550 (5250)
Operating Weight, lb (kg) 12650 (5750)
