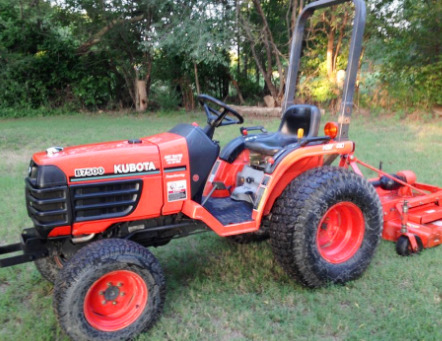

Kubota B7500 Tractor

The Kubota B7500 is a four-wheel drive compact utility tractor. This model was manufactured from 2000 to 2003. The tractor was designed in two versions: B7500D (gear drive) and B7500HSD (hydrostatic drive).

The Kubota B7500 is powered by Kubota D1005-E three-cylinder liquid cooled diesel engine. A 61.1 cubic inches (1 L) engine has a cylinder bore of 3" (76 mm), piston stroke of 2.9" (73.6 mm), and rated power of 19 hp (14.1 kW).

The Kubota B7500 fitted with two transmission options: mechanical transmission with 6 forward and 2 reverse gears, or 2-range hydrostatic transmission with infinite forward and reverse gears. The maximum travel speed (forward and reverse): 12.7 mph (20.4 km/h) / 7.3 mph (11.7 km/h). The open center hydraulic system includes a dual gear pump with fluid flow rate of 7 gal/min (26.5 l/min). The tractor is equipped with 6.00x12 front tyres and 9.50x16 rear tyres. The wheelbase is 59" (1490 mm).

The Kubota B7500 is compatible with the following attachments: 54", 60" mid-mount 3-blade side discharge rotary mower decks with cutting height of 1.5-4.0 in (30-100 mm) and hydraulic lift system, and Kubota LA302 loader with lift capacity to max height of 770 lbs (350 kg).

Engine
Engine Model Kubota D1005-E-D16
Engine Type Liquid cooled, 3-cylinder diesel
Number of Cylinders Three
Displacement, cu in (L) 61,1 (1,0)
Engine Bore, in (mm) 3,0 (76,0)
Engine Stroke, in (mm) 2,9 (73,6)
Rated Engine Power, hp (kW) 19,0 (14,0)
Maximum Engine Power, hp (kW) 21,0 (15,7)
Rated Engine Speed, rpm 2600
Maximum Torque, Nm (ft-lbs) 59,0 (43,5)
Air Cleaner Dual paper element
Lubrication Forced lubrication
Cooling System Pressurized radiator
Radiator Fan Radial air flow
Fuel Tank Capacity, gal (L) 6,3 (24,0)
Oil Capacity, qts (L) 3,2 (3,0)
Coolant Capacity, qts (L) 4,0 (3,8)
Electrical System Rating, Volts 12
Starting System Electric starting

Power Take-Off
Rear PTO Operational Type (Gear) Driven with one way clutch
Rear PTO Operational Type (HST) Live, continuous
PTO Horsepower, hp (kW) 17,0 (12,7)
Rear PTO Speeds, rpm 540
Front PTO Speeds, rpm 2500

Standard Transmission
Transmission Type Gear shift
Gearbox Type 6F/2R
Number of Forward Gears 6
Number of Reverse Gears 2
Clutch Type Dry single plate
Oil Capacity, qts (L) 12,2 (11,5)
Maximum Forward Speed, mph (kph) 11,7 (18,8)
Maximum Reverse Speed, mph (kph) 7,3 (11,7)

Optional Transmission
Transmission Type Hydrostatic (HST)
Number of Forward Gears Infinite (2-range)
Number of Reverse Gears Infinite (2-range)
Oil Capacity, qts (L) 13,2 (12,5)
Maximum Forward Speed, mph (kph) 12,7 (20,4)
Maximum Reverse Speed, mph (kph) 7,3 (11,7)


Wheels and Tires
Drive Wheels 4WD 4x4
Steering Configuration Front steer
Steering System Power Steering
Service Brake Multi-plate wet disc
Front Tire Size 6.00-12
Rear Tire Size 9.50-16

Hydraulic System
Hydraulic System Type Open center
Hydraulic Pump Type Dual pump
Total Pump Flow, gpm (Lpm) 7,0 (26,5)
3-Point Hitch Category 1
Standard Lift Capacity 24-in behind pin, lb (kg) 1058 (480)
Standard Lift Capacity at lift pin, lb (kg) 1356 (615)

Dimensions and Weight
Wheelbase, in (mm) 59,0 (1490)
Length, in (mm) 90,4 (2290)
Height (ROPS), in (mm) 76,4 (1940)
Height (Steering Wheel), in (mm) 52,2 (1320)
Overall Width, in (mm) 42,2 (1070)
Ground Clearance, in (mm) 12,0 (300)
Turning Radius, in (mm) 79,2 (2000)
Weight (Gear Shift), lb (kg) 1325 (600)
Weight (HST), lb (kg) 1370 (620)

Kubota 60" Mower Deck
Mower Deck Model RCK60-24B
Type Mid-Mount Side discharge mower
Number of blades 3 blades
Blade length, in (mm) 20,6 (519)
Mounting method Ground Contact
Cutting width, in (mm) 60 (1520)
Cutting height, in (mm) 1,5-4,0 (38-100)
Adjustment of cutting height Gauge wheel
Weight (approx.), lb (kg) 348 (766)
