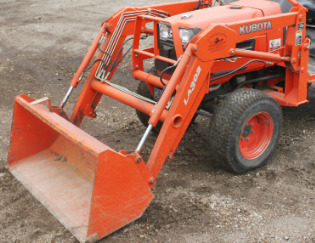

Kubota LA302 Front End Loader

The Kubota LA302 front end loader is fitted to Kubota B7500 tractor. The LA302 front end loader has double-acting hydraulic bucket and lift cylinders.

The 4 foot standard material bucket has a lenght of 500 mm (19.6"), heaped capacity of 0.17 cubic meters (6.2 cu.ft), and weight of 54 kg (120 lb).

The Kubota LA302 loader has a maximum lift height of 1765 mm (69.5") at pin, and clearance with bucket dumped of 1320 mm (52").

The lift capacity is 350 kg (770 lb) at maximum height (bucket pin), and bucket's breakout force is 716 kg (1575 lb). The raising cycle time is 2.7 sec. from ground level to full height, and bucket dumping time is 1.7 seconds.

Compatible Tractors
Tractor model Kubota B7500
Wheel base, mm (in) 1500 (59.1)
Front tires 6.00-12
Rear tires 9.50-16
Rated flow, lpm (gpm) 16.6 (4.4)
Maximum pressure, kg/cm2 (psi) 155 (2200)

Loader
Loader model Kubota LA302
Net weight, kg (lbs) 216 (475)
Boom cylinder bore, mm (in) 38.1 (1.5)
Boom cylinder stroke, mm (in) 307(12.1)
Bucket cylinder bore, mm (in) 38.1 (1.5)
Bucket cylinder stroke, mm (in) 330 (13.0)

Standard Material Bucket
Width, mm (in) 1220 (48.0)
Depth, mm (in) 465 (18.4)
Height, mm (in) 480 (18.9)
Length, mm (in) 500 (19.6)
Bucket Capacity (Struck), m3 (cu.ft.) 0.15 (5.2)
Bucket Capacity (Heaped), m3 (cu.ft.) 0.17 (6.2)
Weight, kg (lbs) 54 (120)


Loader Dimensions
Max. lift height (To bucket pivot pin), mm (in) 1765 (69.5)
Max. lift height under level bucket, mm (in) 1630 (64.2)
Clearance with bucket dumped, mm (in) 1320 (52.0)
Reach at max. lift height (Dumping reach), mm (in) 645 (25.4)
Max. dump angle, deg 45
Reach with bucket on ground, mm (in) 1295 (51.0)
Bucket rollback angle, deg 24
Digging depth, mm (in) 80 (3.1)
Overall height in carrying position, mm (in) 1160 (45.7)

Operating Data
Lift capacity to max. height (Bucket bottom mid point), kg (lbs) 300 (660)
Lift capacity (Bucket pivot pin, max. height), kg (lbs) 350 (770)
Lift capacity (500 mm forward, max. height), kg (lbs) 250 (550)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height), kg (lbs) 390 (860)
Lift capacity (500 mm forward, 1500 mm height), kg (lbs) 290 (640)
Breakout force (Bucket pivot pin), kg (lbs) 716 (1575)
Breakout force (500 mm forward), kg (lbs) 510 (1120)
Bucket rollback force at max. height, kg (lbs) 566 (1245)
Bucket rollback force at 1.5m (59 in.), kg (lbs) 616(1355)
Bucket rollback force at ground level, kg (lbs) 507 (1115)

Cycle Times
Raising time, sec. 2,7
Lowering time, sec. 2,3
Bucket dumping time, sec. 1,7
Bucket rollback time, sec. 1,8
