Ford 770A Front End Loader
The

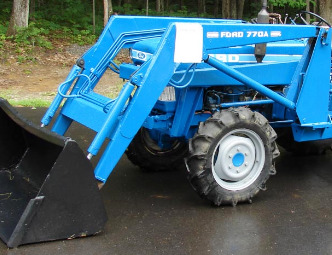

Ford 770A loader is used for Ford 1910 tractor. The 770A loader hydraulic system
includes double-acting bucket and lift hydraulic cylinders. The 4 foot standard
material bucket has a weight of 385 lbs (175 kg) and heaped capacity of 13.9
cu.ft (0.40 cu.m). The 5-ft standard material bucket has a nominal heaped
capacity of 17.6 cu.ft (0.50 cu.m) and weight of 440 lbs (200 kg).
The Ford 770A front end loader has a lifting capacity (at pivot pin) of
1130 lbs (510 kg) to maximum height of 94 in (2380 mm), and bucket's
breakout force of 1860 lbs (845 kg).
The bucket dump clearance is 75 in (1900 mm) at maximum dump angle of 40
degrees. The rated cycle times are 4.4 seconds lifting to maximum
height, and 2.6 seconds to full bucket rollback.
| Tractor models |
Ford 1910 |
| Front tires |
6.0x16 |
| Rear tires |
13.6x24 |
| Hydraulic system flow, gpm (lpm) |
6.2 (23.5) |
| Hydraulic pressure, bar (psi) |
147 (2130) |
| Loader model |
Ford 770A |
| Attachment control type |
Hydraulic |
| Lift cylinder (Number and type) |
2, Double action |
| Bucket cylinder (Number and type) |
2, Double action |
| Weight, lbs (kg) |
800 (365) |
| Counterweight, lbs (kg) |
880 (400) |
| 4-ft Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
11,2 (0,32) |
| Capacity (Heaped), cu.ft (m3) |
13,9 (0,40) |
| Weight, lbs (kg) |
385 (175) |
| 5-ft Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Depth, in (mm) |
29 (734) |
| Height, in (mm) |
25 (633) |
| Capacity (Struck), cu.ft (m3) |
14,0 (0,40) |
| Capacity (Heaped), cu.ft (m3) |
17,6 (0,50) |
| Weight, lbs (kg) |
440 (200) |
| Maximum lift height at pivot pin, in (mm) |
94 (2380) |
| Reach at maximum height, in (mm) |
22 (550) |
| Clearance, bucket dumped, in (mm) |
75 (1900) |
| Maximum dumping angle, degrees |
40 |
| Reach, bucket on ground, in (mm) |
54 (1370) |
| Rollback angle, degrees |
10 |
| Maximum digging depth, in (mm) |
6.2 (157) |
| Lift capacity to maximum height, lbs (kg) |
1130 (510) |
| Breakout force at pivot pin, lbs (kg) |
1860 (845) |
| Raising time to full height, sec |
4,4 |
| Lowering time, sec |
2,0 |
| Bucket rollback time, sec |
2,6 |
