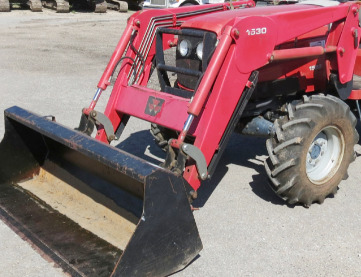

Massey Ferguson 1530 Loader

The Massey Ferguson 1530 front end loader fits MF 1547, 1552 tractors. The loader has double acting hydraulic bucket and lifting cylinders.

The Massey Ferguson 1530 loader has a lifting capacity (at pivot pin) of 2527 lbs (1146 kg) to maximum height of 113.5" (2880 mm), and breakout force (bucket on ground) of 2307 lbs (1046 kg). The maximum bucket dump angle is 48 degrees, and maximum rollback angle is 28 degrees.

The Massey Ferguson 1530 loader is compatible with a 66" (1670 mm) standard material bucket with a rated capacity of 11.9 cu.ft (0.34 cu.m), or 72" (1830 mm) standard material bucket with a rated capacity of 21 cu.ft (0.58 cu.m).

Compatible Tractors
Tractor Models MF 1547, 1552
Front Tires 9.50x16
Rear Tires 16.9x24
Hydraulic System Flow, gpm (lpm) 12.5 (47.3)

Loader
Loader Model Massey Ferguson 1530 NSL
Leveling Configuration Non-self leveling
Tool Attachment Pin Type

66" Standard Material Bucket
Width, in (mm) 66 (1670)
Struck Capacity, cu. ft (m3) 10.5 (0.30)
Heaped Capacity, cu. ft (m3) 11.9 (0.34)


72" Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu. ft (m3) 16,8 (0,47)
Heaped Capacity, cu. ft (m3) 21,0 (0,58)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 113.5 (2880)
Maximum Dump Angle, degrees 48
Maximum Rollback Angle, degrees 28

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 2527 (1146)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 1803 (817)
Breakout Force at Pivot Pin, lbs (kg) 2307 (1046)
