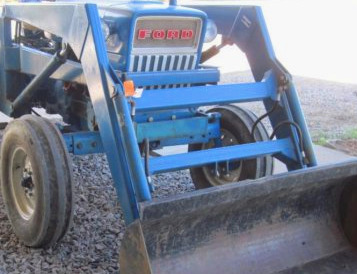

Ford 772 Front End Loader

The Ford 772 front end loader is designed to fit Ford 2000, 3000, 4000, and 5000 tractors. The 772 loader has double-acting hydraulic bucket/lifting cylinders, and mechanical or hydraulic attachment control.

The standard material bucket has a width of 60" (1520 mm), weight of 440 lb (200 kg), and heaped capacity of 17.6 cubic feet (0.50 m3). The nominal heaped capacity of 84" high capacity bucket is 38.5 cubic feet (1.10 m3).

The Ford 772 loader has a lifting capacity of 2500 lbs (1135 kg) for 2000, 3000, 4000 tractors or 2460 lbs (1115 kg) for 5000 tractor, and breakout force of 4000 lbs (1815 kg) for 2000, 3000, 4000 tractors or 3800 lbs (1723 kg) for 5000 tractor.

The maximum lift height (pivot pin) is 118.2" (2991 mm) for 2000 and 3000 tractors, 124" (3137 mm) for 4000 tractor, and 108" (2732 mm) for 5000 tractor. A full dump clearance is 91" (2000, 3000 tractors), 98.5" (4000 tractor), and 78.5" (5000 tractor).

Compatible Tractors
Tractor models Ford 2000, 3000, 4000, 5000
Hydraulic system flow, gpm (lpm) 4.0-8.5 (15.2-32.3)
Hydraulic pressure, bar (psi) 174 (2500)

Loader
Loader model Ford 772
Attachment control type Mechanical / Hydraulic
Lift cylinder (Number and type) 2, Double action
Bucket cylinder (Number and type) 2, Double action
Weight, lbs (kg) 930 (420)
Counterweight, lbs (kg) 1000 (455)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 29 (734)
Height, in (mm) 25 (633)
Capacity (Struck), cu.ft (m3) 11,2 (0,32)
Capacity (Heaped), cu.ft (m3) 13,9 (0,40)
Weight, lbs (kg) 385 (175)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 29 (734)
Height, in (mm) 25 (633)
Capacity (Struck), cu.ft (m3) 14,0 (0,40)
Capacity (Heaped), cu.ft (m3) 17,6 (0,50)
Weight, lbs (kg) 440 (200)

84" High Capacity Bucket
Width, in (mm) 84 (2130)
Depth, in (mm) 33 (836)
Height, in (mm) 31 (784)
Capacity (Struck), cu.ft (m3) 31,8 (0,91)
Capacity (Heaped), cu.ft (m3) 38,5 (1,10)
Weight, lbs (kg) 665 (302)


Loader Dimensions
Maximum lift height at pivot pin (Ford 2000/3000), in (mm) 118,2 (2991)
Maximum lift height at pivot pin (Ford 4000), in (mm) 124 (3137)
Maximum lift height at pivot pin (Ford 5000), in (mm) 108 (2732)
Reach at maximum height (Ford 2000/3000), in (mm) 32 (810)
Reach at maximum height (Ford 4000), in (mm) 28,2 (715)
Reach at maximum height (Ford 5000), in (mm) 34,5 (873)
Clearance, bucket dumped (Ford 2000/3000), in (mm) 91 (2302)
Clearance, bucket dumped (Ford 4000), in (mm) 98,5 (2492)
Clearance, bucket dumped (Ford 5000), in (mm) 78,5 (1985)
Maximum dumping angle (Ford 2000/3000), degrees 38
Maximum dumping angle (Ford 4000), degrees 33
Maximum dumping angle (Ford 5000), degrees 45
Reach, bucket on ground (Ford 2000/3000), in (mm) 79,5 (2010)
Reach, bucket on ground (Ford 4000), in (mm) 75 (1898)
Reach, bucket on ground (Ford 5000), in (mm) 69,5 (1758)
Maximum digging depth (Ford 2000/3000), in (mm) 22 (557)
Maximum digging depth (Ford 4000), in (mm) 13 (330)
Maximum digging depth (Ford 5000), in (mm) 9 (228)
Rollback angle (Ford 2000/3000), degrees 8
Rollback angle (Ford 4000), degrees 9
Rollback angle (Ford 5000), degrees 7
Height in carrying position (Ford 2000/3000), in (mm) 60 (1520)
Height in carrying position (Ford 4000/5000), in (mm) 62,5 (1580)

Operating Data
Lift capacity to maximum height (Ford 2000/4000), lbs (kg) 2500 (1135)
Lift capacity to maximum height (Ford 5000), lbs (kg) 2460 (1115)
Breakout force at pivot pin (Ford 2000/4000), lbs (kg) 4000 (1815)
Breakout force at pivot pin (Ford 5000), lbs (kg) 3800 (1723)

Cycle Times
Raising time to full height (Ford 2000/3000), sec 10,0
Raising time to full height (Ford 4000/5000), sec 9,0
Lowering time (Ford 2000/3000), sec 6,5
Lowering time (Ford 4000), sec 6,0
Lowering time (Ford 5000), sec 5,5
Bucket rollback time (Ford 2000/3000), sec 4,0
Bucket rollback time (Ford 4000), sec 3,5
Bucket rollback time (Ford 5000), sec 3,0
