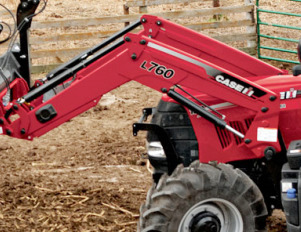

Case L760 Front End Loader

The Case L760 loader is designed for Case IH Puma 165, 170, and 185 tractors. The loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders.

The loader has a lift capacity (at pin) of 6050 lb (2744 kg) to full height of 169" (4290 mm), and breakout force (bucket on ground) of 5000 lb (2268 kg) at 31.5" (800 mm) forward of pin. The bucket dump clearance is 131" (3330 mm) at maximum dump angle of 55 degrees. The raising cycle time is 3.5 sec. from ground line to full height, and bucket dump time is 2.4 seconds.

The Case L760 loader is equipped with the following buckets: 83" (2100 mm) and 95" (2420 mm) standard material buckets with a heaped capacity of 24.7 cu.ft (0.70 m3) and 28.6 cu.ft (0.82 m3), or 95" (2420 mm) and 102" (2580 mm) heavy-duty material buckets with a heaped capacity of 28.7 cu.ft (0.83 m3) and 36.1 cu.ft (1.03 m3).

Compatible Tractors
Tractor Models Puma 165, 170, 185
Front Tires 420/85R30
Rear Tires 520/85R42
Hydraulic System Flow, gpm (lpm) 26.0 (100.3)

Loader
Loader Model Case IH L760 NSL
Leveling System Non Self Leveling
Weight, lb (kg) 1385 (628)

Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu.ft (m3) 19.5 (0.55)
Heaped Capacity, cu.ft (m3) 24.7 (0.70)
Weight, lb (kg) 510 (230)

Standard Material Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 22.5 (0.64)
Heaped Capacity, cu.ft (m3) 28.6 (0.82)
Weight, lb (kg) 580 (264)

Heavy Duty Material Bucket
Width, in (mm) 95 (2420)
Struck Capacity, cu.ft (m3) 22.6 (0.65)
Heaped Capacity, cu.ft (m3) 28.7 (0.83)
Weight, lb (kg) 816 (370)


Heavy Duty Material Bucket
Width, in (mm) 102 (2580)
Struck Capacity, cu.ft (m3) 29.4 (0.84)
Heaped Capacity, cu.ft (m3) 36.1 (1.03)
Weight, lb (kg) 875 (400)

Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 169 (4290)
Maximum lift height under level bucket, in (mm) 157 (3990)
Clearance with bucket dumped, in (mm) 131 (3330)
Reach at maximum lift height, in (mm) 29 (740)
Maximum dump angle, degrees 55
Reach with bucket on ground level, in (mm) 104 (2640)
Maximum rollback angle, degrees 41
Digging Depth, in (mm) 4 (100)

Operating Data
Lift Capacity to max. height, 31.5" (800 mm) forward of bucket pivot pin, lbs (kg) 4300 (1950)
Lift Capacity to maximum height, at bucket pivot pin, lbs (kg) 6050 (2744)
Breakout force, 31.5" (800 mm) forward of bucket pivot pin, lbs (kg) 5000 (2268)

Cycle Times
Raise time to full height, sec 3,5
Lower time, sec 2,8
Bucket dump time, sec 2,4
Bucket Rollback, sec 1,9
