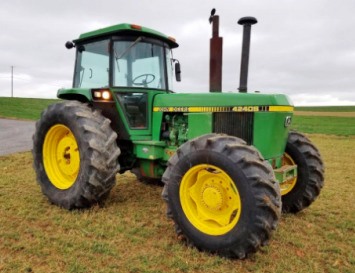

John Deere 4240S Tractor
John Deere 4240S is 4WD (4x4) farm tractor.
This model manufactured from 1981 to
1984. The John Deere 4240S driveline includes a 4-stroke 6-cylinder turbo diesel
engine and 16-speed Quad Range transmission, or 12-speed Synchro Range transmission.
A 7.6 L engine power is 132 Hp and a maximum torque is 560 Nm (413 lb-ft)
at 1400 rpm. The maximum forward speed - 18.8 mph (30.3 kph), max. reverse
speed - 10.5 mph (16.9 kph).
The closed center hydraulic system used a piston pump with fluid flow
rate of 25.4 gpm. The hydraulic system pressure is 2250 psi. The John Deere
4240S tractor equpped with 6.5x14 front tire and 18.0-30 rear tire. The
wheelbase is 104" (2640 mm), and operating weight is 11600 lbs (5260 kg).
| Engine Model |
John Deere |
| Engine Type |
4 Stroke, 6-cylinder turbocharged diesel |
| Number of Cylinders |
Six |
| Displacement, cu in (L) |
466 (7.60) |
| Engine Bore, in (mm) |
4.56 (116.0) |
| Engine Stroke, in (mm) |
4.75 (121.0) |
| Aspiration |
Turbocharged |
| Rated Engine Power, hp (kW) |
132.0 (98.4) |
| Rated Engine Speed, rpm |
2200 |
| Maximum Torque, Nm (lb-ft) |
560 (413) |
| Torque Speed, rpm |
1400 |
| Compression |
16.8:1 |
| Firing Order |
1-5-3-6-2-4 |
| Fuel Tank Capacity, gal (L) |
37.0 (140.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Alternator Rating, Amps |
90 |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
77.0 (56.8) |
| Clutch Type |
Hydraulic disc |
| PTO Speed, rpm |
540/1000 |
| Transmission Type |
Quad-Range |
| Gearbox Type |
16F/6R, Partial power shift |
| Number of Forward Gears |
16 (4 gears in 4 ranges) |
| Number of Reverse Gears |
6 (2 gears in 3 ranges) |
| Clutch Type |
Hydraulic wet disc |
| Oil Capacity, qts (L) |
52.2 (49.2) |
| Maximum Speed (Forward), mph (kph) |
16.7 (26.9) |
| Maximum Speed (Reverse), mph (kph) |
10.5 (16.9) |
| Transmission Type |
Synchro-Range |
| Gearbox Type |
12F/4R, Partially synchronized |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Hydraulic wet disc |
| Maximum Speed (Forward), mph (kph) |
18.8 (30.3) |
| Maximum Speed (Reverse), mph (kph) |
5.5 (8.8) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Wet disc |
| Front Tire Size (Std) |
11.0-16 |
| Rear Tire Size (Std) |
20.8-38 |
| Front Tire Size (Opt) |
16.9-28 |
| Rear Tire Size (Opt) |
20.8-38 |
| Rear Tread, in (mm) |
60.0-81.5 (1520-2070) |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
25.4 (96.0) |
| Hydraulic Pressure, Bar (psi) |
155 (2250) |
| Hydraulic Capacity, gal (L) |
11.0 (41.5) |
| Number of Standard Remote Valves |
1/2 |
| 3-Point Hitch Category |
2 |
| Standard Lift Capacity at lift pin, lb (kg) |
12430 (5640) |
| Wheelbase, in (mm) |
104 (2640) |
| Length, in (mm) |
183.5 (4660) |
| Height (Cab), in (mm) |
114.7 (2910) |
| Height (Exhaust), in (mm) |
124.3 (3150) |
| Width, in (mm) |
96 (2430) |
| Ground Clearance, in (mm) |
14.1 (350) |
| Weight, lb (kg) |
11600 (5260) |
