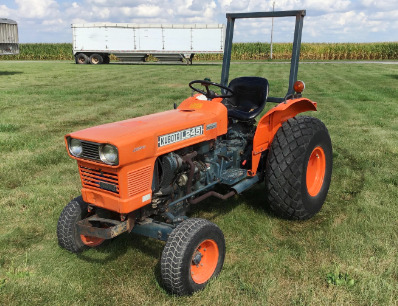

Kubota L245 Tractor

The Kubota L245 is a L-series compact utility tractor. This model was manufactured from 1976 to 1985. The L245 tractor is equipped with Kubota D1101-A vertical 4-cycle 3-cylinder liquid-cooled diesel engine rated at 25 hp (18.6 kW) and 68.3 cubic inches (1.12 L) displacement.

The transmission consists of a dry plate clutch and gearbox with 8 forward and 2 reverse gears. Max. forward speed - 11.9 mph (19.1 km/h), maximum reverse speed - 5.8 mph (9.3 km/h). The open center hydraulic system used a gear pump with flow rate of 3.7 gpm (14 lpm).

The hydraulic pressure is 2000 psi (138 bar). The 4-wheel drive L245DT tractors are equipped with 5.00x15 front tyres and 11.2x28 rear tyres. The 5.00x15 front tyres and 11.2x24 rear tyres fit two wheel drive models. The wheelbase is 63 inches (1600 mm) for 2WD models and 61.2 inches (1550 mm) for 4WD models. The L245 and L245DT tractors are compatible with a Kubota L1200 front end loader.

Engine
Engine Model Kubota D1101-A
Engine Type Vertical, 4-Cycle, 3-Cylinder Diesel
Number of Cylinders 3
Displacement, cu in (L) 68.3 (1.12)
Engine Bore, in (mm) 3.02 (76.0)
Engine Stroke, in (mm) 3.23 (82.0)
Aspiration Natural
Rated Engine Power, hp (kW) 25.0 (18.6)
Rated Engine Speed, rpm 2800
Slow Idle Speed, rpm 800-850
High Idle Speed, rpm 2950
Firing Order 1-2-3
Fuel Injection Timing (BTDC), deg 25
Fuel Injection Pressure, MPa (psi) 14.7 (2135)
Fuel Tank Capacity, gal (L) 6.0 (22.7)
Oil Capacity, qts (L) 6.4 (6.1)
Coolant Capacity, qts (L) 7.0 (6.6)
Electrical System Rating, Volts 12
Ground Polarity Negative

Power Take-Off
PTO Operational Type Independent
PTO Horsepower, hp (kW) 22.0 (16.4)
PTO Speeds, rpm 540/700/1000

Transmission
Transmission Type Sliding gear
Gearbox Type 8F/2R
Number of Forward Gears 8
Number of Reverse Gears 2
Clutch Type Dry Plate
Oil Capacity, qt (L) 34.8 (33.0)
Maximum Speed (Forward), mph (kph) 11.9 (19.1)
Maximum Speed (Reverse), mph (kph) 5.8 (9.3)


Wheels and Tires
Drive Wheels 2WD/4WD (L245DT)
Steering Configuration Front Steer
Steering System Manual
Front Tire Size 5.00-15
Rear Tire Size (2WD) 11.2-24
Rear Tire Size (4WD, L245DT) 11.2-28
Front Tread (2WD), in (mm) 37.8-51.6 (950-1310)
Front Tread (4WD, L245DT), in (mm) 39.8 (1000)
Rear Tread, in (mm) 41.1-55.4 (1040-1400)

Hydraulic System
Hydraulic System Type Open Center
Implement Pump Type Gear
Implement Pump Flow, gpm (Lpm) 3.7 (14.0)
Hydraulic Pressure, Bar (psi) 138 (2000)
Hydraulic Capacity, gal (L) 8.7 (33.0)
3-Point Hitch Category 1
Standard Lift Capacity at lift pin, lb (kg) 1540 (700)

Dimensions and Weight
Wheelbase (2WD), in (mm) 63 (1600)
Wheelbase (4WD, L245DT), in (mm) 61.2 (1550)
Length, in (mm) 101.5 (2570)
Height, in (mm) 84.6 (2140)
Overall Width, in (mm) 51.6 (1310)
Ground Clearance (2WD), in (mm) 13.6 (340)
Ground Clearance (4WD, L245DT), in (mm) 12.0 (295)
Shipping Weight (2WD), lb (kg) 1825 (830)
Shipping Weight (4WD, L245DT), lb (kg) 2000 (910)
Operating Weight (2WD), lb (kg) 2200 (995)
Operating Weight (4WD, L245DT), lb (kg) 2385 (1080)
