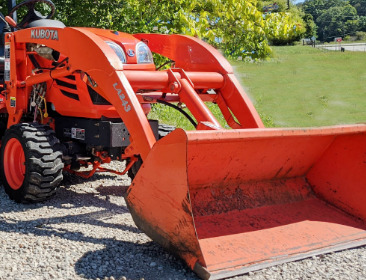

Kubota LA243 Front End Loader

The Kubota LA243 front end loader fits Kubota BX2360, BX2660 tractors. The LA243 loader is equipped with double-acting boom and bucket hydraulic cylinders. The 4-ft standard material bucket has a rated capacity of 0.17 m3 (6.1 cu.ft), depth of 495 mm (19.5 inches), and weight of 60 kg (132 lbs).

The Kubota LA243 loader has a lift capacity of 340 kg (750 lbs) lb (at pin) to max height of 1810 mm (71.3 inches), and breakout force is 643 kg (1415 lbs). The clearance with bucket dumped is 1330 mm (52.4 inches) at max dump angle of 45 degrees.

The boom raising time is 3.5 sec. from ground level to maximum height, and bucket dump time is 1.7 sec.

Compatible Tractors
Tractor model Kubota BX2360, BX2660
Wheel base 1400 mm (55.1 in.)
Front tires 18x8.5-10
Rear tires 26x12-12
Rated flow 14 L/min (3.1 Imp gals/min)
Maximum pressure 12.3 MPa (1778 psi)

Loader
Model Kubota LA243 Loader
Net weight (Approximate) 170 kg (375 lbs)
Boom cylinder bore 40 mm (1.57 in.)
Boom cylinder stroke 326 mm (12.8 in.)
Bucket cylinder bore 65 mm (2.56 in.)
Bucket cylinder stroke 204 mm (8.03 in.)

Standard Material Bucket
Bucket Type Pin On
Width 1219 mm (48.0 in.)
Depth 495 mm (19.5 in.)
Height 465 mm (18.3 in.)
Length 538 mm (21.2 in.)
Bucket Capacity (Struck) 0.14 m3 (4.9 cu.ft)
Bucket Capacity (Heaped) 0.17 m3 (6.1 cu.ft)
Weight 60 kg (132 lbs)


Loader Dimensions
Max. lift height (To bucket pivot pin) 1810 mm (71.3 in.)
Max. lift height under level bucket 1680 mm (66.1 in.)
Clearance with bucket dumped 1330 mm (52.4 in.)
Reach at max. lift height (Dumping reach) 735 mm (28.9 in.)
Max. dump angle 45 deg. (0.785 rad)
Reach with bucket on ground 1390 mm (54.7 in.)
Bucket rollback angle 29 deg. (0.51 rad)
Overall height in carrying position 990 mm (39.0 in.)

Operating Data
Lift capacity to max. height (Bucket bottom mid point) 240 kg (529 lbs)
Lift capacity (Bucket pivot pin, max. height) 340 kg (750 lbs)
Lift capacity (500 mm forward, max. height) 235 kg (518 lbs)
Lift capacity (Bucket pivot pin, 1500 mm (59 in.) height) 375 kg (827 lbs)
Lift capacity (500 mm forward, 1500 mm height) 270 kg (595 lbs)
Breakout force (Bucket pivot pin) 643 kg (1415 lbs)
Breakout force (500 mm forward) 451 kg (992 lbs)
Bucket rollback force at max. height 486 kg (1069 lbs)
Bucket rollback force at 1.5M (59 in.) 573 kg (1260 lbs)
Bucket rollback force at ground level 561 kg (1235 lbs)

Cycle Times
Raising time 3.5 sec.
Lowering time 2.7 sec.
Bucket dumping time 1.7 sec.
Bucket rollback time 2.4 sec.
