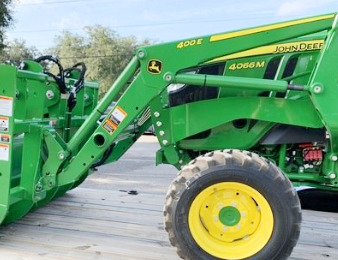

John Deere 400E Front End Loader

The John Deere 400E front end loader is used with John Deere 4044R, 4049R, 4052R, 4066R, John Deere 4044M, 4049M, 4052M, 4066M tractors. The front end loader hydraulic system includes double-acting hydraulic bucket and lifting cylinders.

The John Deere 400E has a lift capacity (pivot pin) of 1087 kg (2391 lbs) to max height of 2850 mm (112 in), and boom breakout force of 1750 kg (3853 lbs). The bucket dump clearance is 2298 mm (90 in) at max dump angle of 42 degrees.

The rated cycle times are 4.26 seconds raising to maximum height, and 3.14 seconds maximum bucket dumping. Available buckets for the John Deere 400E loader: a 73-in (1850 mm) standard material bucket with a rated capacity of 0.36 cu.m (12.8 cu.ft), and 73-in (1850 mm) heavy-duty material bucket with a rated capacity of 0.39 cu.m (13.8 cu.ft).

Compatible Tractors
Tractor Models John Deere 4044M, 4049M, 4052M, 4066M, 4044R, 4049R, 4052R, 4066R
Front Tires 10-16.5
Rear Tires 16.9-24.0
Wheelbase 1850 (73 in)
Hydraulic System Flow 39 L/min (10 gal/min)
Maximum Pressure 172 bar (2500 psi)

Loader
Loader Model JD 400E Loader
Leveling configuration Non-Self Leveling
Weight 252 kg (557 lbs)

Standard Material Bucket
Width 1850 mm (73 in)
Height 516 mm (20.2 in)
Depth 591 mm (23.1 in)
Struck capacity 0.30 cu.m (10.7 cu.ft)
Heaped capacity 0.36 cu.m (12.8 cu.ft)
Weight 101.2 kg (223 lbs)

Heavy-Duty Material Bucket
Width 1850 mm (73 in)
Height 519 mm (20.4 in)
Depth 588 mm (23.1 in)
Struck capacity 0.30 cu.m (10.7 cu.ft)
Heaped capacity 0.39 cu.m (13.8 cu.ft)
Weight 140 kg (308 lbs)


Loader Dimensions
Maximum lift height to pivot pin 2850 mm (112 in)
Maximum lift height under bucket level 2646 mm (104 in)
Clearance with bucket dumped 2298 mm (90 in)
Reach at maximum height 705 mm (28 in)
Maximum dump angle 42 degrees
Maximum dump angle at ground 128 degrees
Reach with bucket on ground 1672 mm (66 in)
Bucket rollback angle 29 degrees
Rollback angle at full height 110 degrees
Digging depth 146 mm (6 in)
Overall length 3522 (139 in)
Overall height in carry position 1505 mm (59 in)

Operating Data
Lift capacity to maximum height at pivot pin 1087 kg (2391 lbs)
Lift capacity to maximum height, 19.5" (0.5m) forward of pivot pin 800 kg (1760 lbs)
Lift capacity to 59" (1.5m) height at pivot pin 1307 kg (2875 lbs)
Lift capacity to 59" (1.5m) height, 19.5" (0.5m) forward of pivot pin 1043 kg (2295 lbs)
Breakout force at pivot pin 1750 kg (3853 lbs)
Breakout force, 19.5" (0.5m) forward of pivot pin 1320 kg (2902 lbs)
Rollback force at maximum height 1870 kg (4112 lbs)
Rollback force at 59" (1.5m) height at pivot pin 2360 kg (5191 lbs)
Rollback force at ground-level line 1585 kg (3487 lbs)

Cycle Times
Loader Raise Time 4.26 sec.
Loader Lower Time 3.13 sec.
Bucket Dump Time 3.14 sec.
Bucket Rollback Time 2.42 sec.
