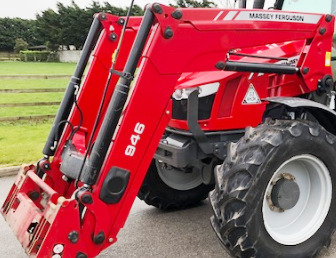

Massey Ferguson 946 Loader
The
Massey Ferguson 946 mechanical self leveling loader is available for Massey
Ferguson 5440, 5450 tractors. The loader hydraulic system includes double-acting
hydraulic bucket and lifting cylinders.
The Massey Ferguson 946 loader has a lifting capacity (at pivot pin) of
4180 lbs (1900 kg) to full height of 148.2" (3750 mm), and rollback
force of 6095 lbs (2770 kg) at ground level. The maximum dump angle at
full height is 60 degrees.
The Massey Ferguson 946 loader can be equipped with the following
buckets: a 83" (2108 mm) standard material bucket with a rated capacity
of 29 cu.ft (0.82 m3), and 79" (2000 mm) high volume bucket with a rated
capacity of 40.6 cu.ft (1.16 m3).
| Tractor Models |
Massey Ferguson 5440, 5450 |
| Front Tires |
11.2R24 |
| Rear Tires |
16.9R30 |
| Hydraulic System Flow, gpm (lpm) |
15.3 (58.0) |
| Loader Model |
MF 946 MSL |
| Leveling Configuration |
Mechanical self leveling |
| Lift Cylinder (rod diameter), in (mm) |
75/40 |
| Backet Cylinder (rod diameter), in (mm) |
80/40 |
| Weight (standard configuration), lb (kg) |
1280 (585) |
| Bucket Width, in (mm) |
83 (2108) |
| Capacity, cu.ft (cu.m) |
29 (0.82) |
| Weight, lb (kg) |
510 (230) |
| Bucket Width, in (mm) |
79 (2000) |
| Capacity, ft3 (m3) |
40.6 (1.16) |
| Weight, lb (kg) |
550 (250) |
| Maximum lift height at pivot pin, in (mm) |
148.2 (3750) |
| Maximum lift height under level bucket, in (mm) |
136.4 (3450) |
| Maximum dump angle at maximum height, degrees |
60 |
| Maximum rollback angle at ground level, degrees |
43 |
| Lift capacity to maximum height at pivot pin, lb (kg) |
4180 (1900) |
| Lift capacity to ground level at pivot pin, lb (kg) |
5280 (2400) |
| Lift capacity to maximum height at 31.5" (800 mm) from pivot pin, lb (kg) |
3586 (1630) |
| Lift capacity to 1.5m height at 31.5" (800 mm) from pivot pin, lb (kg) |
3960 (1800) |
| Lift capacity to ground level at 31.5" (800 mm) from pivot pin, lb (kg) |
4202 (1910) |
| Rollback force at ground level at 31.5" (800 mm), lb (kg) |
6095 (2770) |
