Case L130 Front End Loader
The

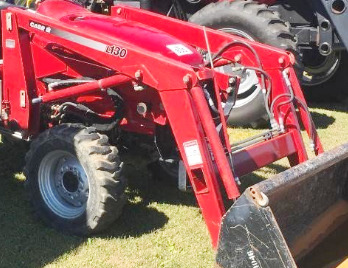

Case IH L130 front end loader is available for Case IH D25, Case IH D29
tractors.
The front end loader has double acting hydraulic bucket and boom
cylinders. The Case IH L130 loader has a lifting capacity (at
pivot pin) of 800 lbs (362 kg) to max height of 100.8 in (2560 mm), and
boom breakout force of 1602 lbs (726 kg).
The bucket dump clearance with a 39-degree max dump angle is 83.3 in
(2110 mm).
The Case IH L130 loader is compatible with the following
buckets: 4 foot bucket with a heaped capacity of 13.9 cu.ft (0.39 m3),
54" bucket with a heaped capacity of 15.8 cu.ft (0.45 m3), and 5 foot
bucket with a heaped capacity of 17.6 cu.ft (0.50 m3).
| Tractor Models |
Case IH D25, Case IH D29 |
| Front Tires |
24x8.50-14 |
| Rear Tires |
13.6x16 |
| Hydraulic System Flow, gpm (lpm) |
6.1 (23.2) |
| Loader Model |
Case IH L130 NSL |
| Leveling System |
Non Self Leveling |
| Weight, lb (kg) |
839 (380) |
| 48" Standard Material Bucket |
| Width, in (mm) |
48 (1220) |
| Struck Capacity, cu.ft (m3) |
11.2 (0.32) |
| Heaped Capacity, cu.ft (m3) |
13.9 (0.39) |
| Weight, lb (kg) |
335 (152) |
| 54" Standard Material Bucket |
| Width, in (mm) |
54 (1370) |
| Struck Capacity, cu.ft (m3) |
12.6 (0.36) |
| Heaped Capacity, cu.ft (m3) |
15.8 (0.45) |
| Weight, lb (kg) |
365 (166) |
| 60" Standard Material Bucket |
| Width, in (mm) |
60 (1520) |
| Struck Capacity, cu.ft (m3) |
14.0 (0.40) |
| Heaped Capacity, cu.ft (m3) |
17.6 (0.50) |
| Weight, lb (kg) |
380 (173) |
| Maximum lift height to bucket pivot pin, in (mm) |
100.8 (2560) |
| Clearance with bucket dumped, in (mm) |
83.3 (2110) |
| Reach at maximum lift height, in (mm) |
23.5 (590) |
| Maximum dump angle, degrees |
39 |
| Maximum rollback angle, degrees |
20 |
| Lift Capacity to maximum height, at bucket pivot pin, lbs (kg) |
800 (362) |
| Breakout force at pivot pin, lbs (kg) |
1602 (726) |
