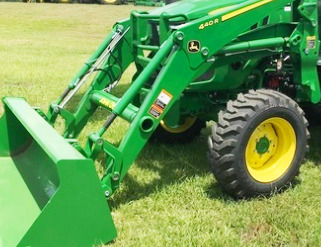

John Deere 440R Front End Loader

The John Deere 440R loader is available for JD 4044R, 4049R, 4052R, 4066R, 4120, 4320, 4520, and 4720 tractors. The loader hydraulic system includes double-acting hydraulic boom and bucket cylinders.

The John Deere 440R loader’s max lift height is 2799 mm (110 in) using a non self leveling system or 2767 mm (109 in) using a mechanical self leveling system, and bucket dump clearance is 2195 mm (86 in) using NSL system or 2220 mm (87 in) using MSL system.

The lifting capacity at maximum height (pivot pin) is 1154 kg (2539 lbs) with NSL system or 1126 kg (2477 lbs) with MSL system, and breakout force (bucket on ground) is 1830 kg (4027 lbs) with NSL system or 1780 kg (3917 lbs) with MSL system. The rated cycle times (NSL or MSL) are 2.60 or 2.42 seconds lifting to full height, and 1.96 or 2.29 seconds to full bucket dump. The John Deere 440R loader is compatible with a 73-in (1850 mm) heavy-duty materials bucket.

Compatible Tractors
Tractor Models JD 4044R, 4049R, 4052R, 4066R, 4120, 4320, 4520, 4720
Minimum Rear Ballast 380 kg (836 lbs)
Front Tires 8.00x16
Rear Tires 13.6x28
Wheel Base 1846 mm (73 in)
Rated Flow 60 L/min (16 gal/min)
Maximum Pressure 172 bar (2500 psi)

Loader
Loader 440R NSL/MSL
Leveling System Non-Self Leveling/Mechanical Self Leveling
Weight 410 kg (900 lbs)

Heavy-Duty Materials Bucket
Width 1850 mm (73 in)
Length 585 mm (23 in)
Weight 146 kg (321 lbs)

Loader Dimensions
Maximum Lift Height to Pivot Pin (NSL) 2799 mm (110 in)
Maximum Lift Height to Pivot Pin (MSL) 2767 mm (109 in)
Clearance under Bucket Level (NSL) 2593 mm (102 in)
Clearance under Bucket Level (MSL) 2562 mm (101 in)
Clearance with Bucket Dumped (NSL) 2195 mm (86 in)
Clearance with Bucket Dumped (MSL) 2220 mm (87 in)
Reach at Maximum Lift Height with Bucket Dumped (NSL) 753 mm (30 in)
Reach at Maximum Lift Height with Bucket Dumped (MSL) 762 mm (30 in)
Reach at Bucket on Ground with Bucket Leveled (NSL) 1703 mm (67 in)
Reach at Bucket on Ground with Bucket Leveled (MSL) 1739 mm (68 in)
Dump Angle 47 deg
Dump Angle at Ground 130 deg
Overall Length (NSL) 3549 mm (140 in)
Overall Length (MSL) 3585 mm (141 in)
Digging Depth (NSL) 119 mm (5 in)
Digging Depth (MSL) 164 mm (6 in)
Rollback Angle (NSL) 33 deg
Rollback Angle (MSL) 42 deg


Operating Data
Lift Capacity to Max Height at Pin (NSL) 1154 kg (2539 lbs)
Lift Capacity to Max Height at Pin (MSL) 1126 kg (2477 lbs)
Lift Capacity to Max Height at 0.5m (19.7") Forward of Pin (NSL) 857 kg (1885 lbs)
Lift Capacity to Max Height at 0.5m (19.7") Forward of Pin (MSL) 990 kg (2178 lbs)
Lift Capacity to 1.5m (59") Height at Pin (NSL) 1374 kg (3023 lbs)
Lift Capacity to 1.5m (59") Height at Pin (MSL) 1338 kg (2944 lbs)
Lift Capacity to 1.5m (59") Height at 0.5m (19.7") Forward of Pin (NSL) 1097 kg (2413 lbs)
Lift Capacity to 1.5m (59") Height at 0.5m (19.7") Forward of Pin (MSL) 1284 kg (2825 lbs)
Breakout Force at Pin (NSL) 1830 kg (4027 lbs)
Breakout Force at Pin (MSL) 1780 kg (3917 lbs)
Breakout Force at 0.5m (19.7") Ahead of Pin (NSL) 1380 kg (3037 lbs)
Breakout Force at 0.5m (19.7") Ahead of Pin (MSL) 1630 kg (3584 lbs)
Bucket Rollback Force at Maximum Height (NSL) 942 kg (2073 lbs)
Bucket Rollback Force at Maximum Height (MSL) 1185 kg (2609 lbs)
Bucket Rollback Force at 1.5m (59") Lift Height (NSL) 1495 kg (3288 lbs)
Bucket Rollback Force at 1.5m (59") Lift Height (MSL) 1900 kg (4186 lbs)
Bucket Rollback Force at Ground Level Line (NSL) 1558 kg (3427 lbs)
Bucket Rollback Force at Ground Level Line (MSL) 2275 kg (5002 lbs)

Cycle Times
Loader Raise Time (NSL/MSL) 2.60/2.42 sec
Loader Lower Time (NSL/MSL) 1.75/1.63 sec
Bucket Dump Time (NSL/MSL) 1.96/2.29 sec
Bucket Rollback Time (NSL/MSL) 1.16/1.54 sec
