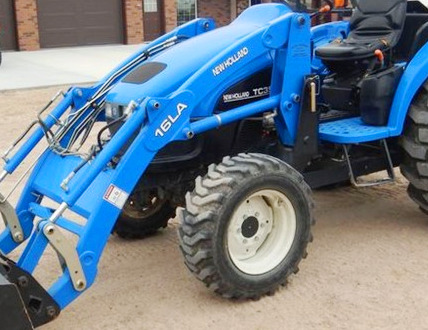

New Holland 16LA Front End Loader

The New Holland 16LA loader is used for New Holland TC35, TC35DA, New Holland TC40, and TC45DA tractors. The front end loader has double acting hydraulic boom and bucket cylinders.

The New Holland 16LA has a max lift height of 105" (2660 mm) at pin and bucket dump clearance of 81.5" (2070 mm). The max lifting capacity is rated at 2000 lbs (907 kg) to full height, and bucket's breakout force is 3540 lbs (1605 kg).

The New Holland 16LA loader can be equipped with the following buckets: 60" (1520 mm) and 72" (1820 mm) standard material buckets with heaped capacities of 0.39 cu.yd (0.30 m3) and 0.47 cu.yd (0.36 m3), 60" (1520 mm) and 72" (1820 mm) heavy duty buckets with heaped capacities of 0.41 cu.yd (0.32 m3) and 0.50 cu.yd (0.38 m3), or 68" (1720 mm) high volume bucket with a heaped capacity of 0.58 cu.yd (0.44 m3).

Compatible Tractors
Tractor Models New Holland TC35, TC35DA, New Holland TC40, and TC45DA
Front Tires 27x8.50-15, 7.00x14
Rear Tires 44x18-20, 11.2x24
Hydraulic System Flow, gpm (lpm) 7.5-10.0 (29-38)

Loader
Loader Model NH 16LA Quick-Attach
Leveling System Non-self leveling
Weight (w/o Bucket), lbs (kg) 748 (340)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, yd3 (m3) 0.33 (0.25)
Heaped Capacity, yd3 (m3) 0.39 (0.30)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, yd3 (m3) 0.39 (0.30)
Heaped Capacity, yd3 (m3) 0.47 (0.36)

60" Heavy Duty Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, yd3 (m3) 0.35 (0.27)
Heaped Capacity, yd3 (m3) 0.41 (0.32)

72" Heavy Duty Material Bucket
Width, in (mm) 72 (1820)
Struck Capacity, yd3 (m3) 0.42 (0.33)
Heaped Capacity, yd3 (m3) 0.50 (0.38)

68" High Volume Bucket
Width, in (mm) 68 (1720)
Struck Capacity, yd3 (m3) 0.49 (0.37)
Heaped Capacity, yd3 (m3) 0.58 (0.44)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 105 (2660)
Clearance with Bucket Dumped, in (mm) 81.5 (2070)
Clearance with Level Bucket (TC40, TC45DA), in (mm) 98 (2480)
Reach at Maximum Lift Height (TC35, TC35DA), in (mm) 32.5 (820)
Reach at Maximum Lift Height (TC40, TC45DA), in (mm) 33 (830)
Digging Depth, in (mm) 6.5 (165)
Maximum Dump Angle, degrees 58
Reach with Bucket on Ground, in (mm) 69.3 (1750)
Maximum Rollback Angle, degrees 30

Operating Data
Lift Capacity to Max. Height at Pivot (TC35, TC35DA), lbs (kg) 1800 (815)
Lift Capacity to Max. Height at Pivot (TC40, TC45DA), lbs (kg) 2000 (907)
Lift Capacity to Max. Height at 19.7" (0.5m) from Pivot (TC35, TC35DA), lbs (kg) 1386 (630)
Lift Capacity to Max. Height at 19.7" (0.5m) from Pivot (TC40, TC45DA), lbs (kg) 1540 (700)
Lift Capacity to 59" (1.5m) Height at Pivot (TC35, TC35DA), lbs (kg) 2135 (967)
Lift Capacity to 59" (1.5m) Height at Pivot (TC40, TC45DA), lbs (kg) 2317 (1050)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Pivot (TC35, TC35DA), lbs (kg) 1655 (750)
Lift Capacity to 59" (1.5m) Height at 19.7" (0.5m) from Pivot (TC40, TC45DA), lbs (kg) 1760 (800)
Breakout Force at Pivot (TC35, TC35DA), lbs (kg) 3186 (1445)
Breakout Force at Pivot (TC40, TC45DA), lbs (kg) 3540 (1605)
Breakout Force at 19.7" (0.5m) from Pivot (TC35, TC35DA), lbs (kg) 2376 (1078)
Breakout Force at 19.7" (0.5m) from Pivot (TC40, TC45DA), lbs (kg) 2640 (1200)
