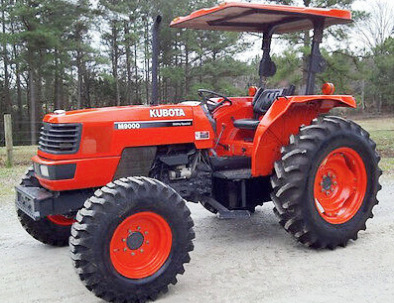

Kubota M9000 Tractor
The
Kubota M9000 is a M-Series utility tractor. This model was manufactured from 1997 to
2005. The Kubota M9000 driveline components: A V3300-TI-E vertical four-cylinder
naturally aspirated diesel engine and synchronized shuttle transmission with 8
forward and 8 reverse gears, or 8-speed power shuttle transmission.
A 3.3L engine output rating is 92.1 Hp (68.7 kW) at 2600 rpm. Max.
forward and reverse speed - 20.7 mph (33.3 kph). The open center
hydraulic system includes a gear pump with fluid flow rate of 23.1 gpm
(87.4 lpm). The main relief pressure is 2825 psi (180 bar). The rear lift
capacity is 4630 lbs at 600 mm behind pin.
The 4-wheel drive models are equipped with 12.4x24 front tyres and
18.4x30 rear tyres. The 7.50x18 front tyres and 16.9x28 rear tyres fit two
wheel drive tractors. The wheelbase is 88.6 inches (2250 mm). Compatible
front end loaders for the Kubota M9000 tractor:
LA1251 loader with a
lift capacity to max height of 2755 lbs (1250 kg), or LA1301 loader with
a lift capacity to max height of 2750 lbs (1248 kg).
Engine Model |
Kubota V3300-TI-E |
Engine Type |
Vertical, 4-Stroke, Four-cylinder diesel |
Number of Cylinders |
4 |
Displacement, cu in (L) |
202.1 (3.30) |
Engine Bore, in (mm) |
3.86 (98.0) |
Engine Stroke, in (mm) |
4.33 (110.0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
92.1 (68.7) |
Rated Engine Speed, rpm |
2600 |
Compression |
21.8:1 |
Firing Order |
1-3-4-2 |
Fuel Injection Pump |
Bosch Mini Type |
Governor |
Mechanical |
Nozzle |
Bosch Throttle Type |
Lubricating System |
Forced Lubricating by Trochoid Pump |
Fuel Tank Capacity (ROPS), gal (L) |
23.8 (90.0) |
Fuel Tank Capacity (Cab), gal (L) |
29.1 (110.0) |
Oil Capacity, qts (L) |
11.3 (10.7) |
Coolant Capacity, qts (L) |
9.5 (9.0) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
45/60 |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
80.0 (59.7) |
PTO Clutch Type |
Hydraulic wet disc |
PTO Speed, rpm |
540 |
PTO / Engine Speed, rpm |
540/2205 |
Transmission Type |
Synchronized shuttle |
Gearbox Type |
8F/8R |
Number of Forward Gears |
8 |
Number of Reverse Gears |
8 |
Clutch Type |
Single dry disc |
Clutch Disc Diameter, in (mm) |
12 (300) |
Oil Capacity, qts (L) |
54.9 (52.0) |
Maximum Forward Speed, mph (kph) |
20.7 (33.3) |
Maximum Reverse Speed, mph (kph) |
20.7 (33.3) |
Transmission Type |
Power Shuttle |
Gearbox Type |
8F/8R |
Number of Forward Gears |
8 |
Number of Reverse Gears |
8 |
Clutch Type |
Hydraulic wet disc |
Oil Capacity, qts (L) |
54.9 (52.0) |
Maximum Forward Speed, mph (kph) |
20.7 (33.3) |
Maximum Reverse Speed, mph (kph) |
20.7 (33.3) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front steer |
Steering System |
Hydrostatic power |
Brakes Type |
Mechanical wet disc |
Front Tire Size (2WD) |
7.50x18 |
Rear Tire Size (2WD) |
16.9x28 |
Front Tire Size (4WD) |
12.4x24 |
Rear Tire Size (4WD) |
18.4x30 |
Front Track Width (2WD), in (mm) |
56.7-80.3 (1440-2030) |
Front Track Width (4WD), in (mm) |
59.8-63.8 (1510-1620) |
Rear Track Width, in (mm) |
59.8-75.6 (1510-1920) |
Hydraulic System Type |
Open center |
Implement Pump Flow, gpm (Lpm) |
23.1 (87.4) |
Hydraulic Fluid Capacity, gal (L) |
13.7 (52.0) |
Hydraulic Pressure, Bar (psi) |
195 (2825) |
Number of Standard Remote Valves |
1/3 |
3-Point Hitch Category |
2 |
Draft Sensing or Lift Control |
Position control and top-link draft sensing |
Standard Lift Capacity 24 (600mm) behind pin, lb (kg) |
4630 (2100) |
Standard Lift Capacity at lift pin, lb (kg) |
5560 (2520) |
Wheelbase, in (mm) |
88.6 (2250) |
Length (2WD), in (mm) |
152.6 (3870) |
Length (4WD), in (mm) |
151.4 (3840) |
Height (ROPS), in (mm) |
98.4 (2490) |
Height (Cab), in (mm) |
99.6 (2520) |
Overall Width, in (mm) |
78 (1980) |
Ground Clearance, in (mm) |
19.7 (500) |
Weight (ROPS, 2WD), lb (kg) |
5675 (2575) |
Weight (ROPS, 4WD), lb (kg) |
6160 (2795) |
Weight (Cab, 2WD), lb (kg) |
6260 (2840) |
Weight (Cab, 4WD), lb (kg) |
6750 (3060) |
