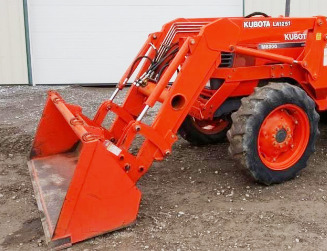

Kubota LA1251 Front End Loader

The Kubota LA1251 non self leveling loader is available for Kubota M8200, M9000 tractors. The Kubota LA1251 loader has double acting hydraulic lifting and bucket cylinders. The loader’s maximum lift height is 133.5 in (3390 mm) at pin and clearance with bucket dumped is 97.2 in (2460 mm).

The lifting capacity is 2755 lbs (1249 kg) at maximum height (bucket pin), and breakout force is 4905 lbs (2224 kg). The raising time is 3.8 sec from ground line to max height, and bucket dumping time is 1.7 sec. The Kubota LA1251 front-end loader is compatible with a 84" (2130 mm) standard material bucket with a rated capacity of 0.60 m3 (21.1 cu.ft).

Compatible Tractors
Tractor Models Kubota M8200, M9000
Front Tires 12,4x24
Rear Tires 18,4x30
Hydraulic System Flow, gpm (lpm) 23.0 (87.4)

Loader
Loader Model Kubota LA1251
Leveling System Non self leveling
Net Weight (approximate), lb (kg) 1500 (680)

Standard Material Bucket
Width, in (mm) 84 (2130)
Struck Capacity, cu.ft (m3) 16.8 (0.48)
Heaped Capacity, cu.ft (m3) 21.1 (0.60)
Weight, lb (kg) 440 (200)

Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 133.5 (3390)
Clearance with Bucket Dumped, in (mm) 97.2 (2460)
Reach at Maximum Lift Height, in (mm) 24.4 (610)
Maximum Dump Angle, degrees 59
Reach with Bucket on Ground, in (mm) 78.3 (1980)
Maximum Rollback Angle, degrees 39

Operating Data
Lift Capacity to Max Height at Pivot Point, lbs (kg) 2755 (1249)
Max Breakout Force at Bucket Pivot Point, lbs (kg) 4905 (2224)
Max Breakout Force at 31.5" (0.8m) from Bucket Pivot Point, lbs (kg) 3750 (1701)

Cycle Times
Raising Time, second 3.8
Lowering Time, second 2.7
Rollback Time, second 2.5
Dumping Time, second 1.7
