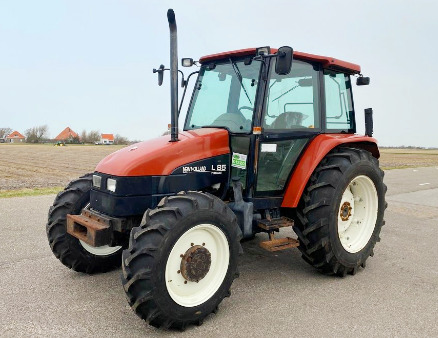

New Holland L85 Tractor
The
New Holland L85 is a two-wheel drive or four-wheel drive utility tractor. This
model was manufactured between 1996 and 1999. The New Holland L85 tractor is
powered by 238 cubic inches (3.9 L) Iveco 8045.25 4-cycles 4-cylinder vertical
direct injection diesel engine with a rated power of 85 hp (63.4 kW) at 2500
rpm.
The New Holland is fitted with two transmission options: 24x12 Dual
Command partial power shift transmission, or Synchro Command partially
synchronized transmission with 12 forward and 12 reverse gears. Max.
forward speed - 21.2 mph (34 km/h), maximum reverse speed - 20.6 mph (33
km/h).
The open center hydraulic system includes a gear pump with a flow of
14.5 gpm (54.9 lpm). The hydraulic pressure is 2755 psi (190 bar). The
New Holland L85 was equipped with a hydrostatic power steering system,
hydraulic wet disc brakes, 13.6R24 front tires, and 16.9 R34 rear tires.
The wheelbase is 92.2" (2340 mm) for 2WD models and 91.1" (2310 mm) for
4WD models.
| Engine Model |
Iveco 8045.25 |
| Engine Type |
Diesel direct injection, 4 cycles |
| Number of Cylinders |
4, vertical, in line |
| Displacement, cu in (L) |
238 (3,9) |
| Engine Bore, in (mm) |
4,09 (104,0) |
| Engine Stroke, in (mm) |
4,53 (115,0) |
| Cylinder liners |
Wet |
| Rated Engine Power, hp (kW) |
85,0 (63,4) |
| Rated Engine Speed, rpm |
2500 |
| Compression |
16.5:1 |
| Fuel Feed System |
Rotary injection pump with centrifugal speed governor |
| Fuel Injection Pump |
L786 type, rotary |
| Governor Type |
Mechanical |
| Lubrication system |
Forced feed by means of gear pump |
| Fuel Tank Capacity, gal (L) |
29,0 (110,0) |
| Oil Capacity, qts (L) |
12,4 (11,7) |
| Coolant Capacity (ROPS/Cabin), qts (L) |
14,8 (14,0) / 16,9 (16,0) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
45/65 |
| PTO Operational Type |
Independent |
| Clutch Type |
Electro-hydraulic wet disc |
| PTO Horsepower, hp (kW) |
76,0 (56,7) |
| PTO Speeds, rpm |
540/1000 |
| Transmission Model |
Dual Command |
| Transmission Type |
Partial power shift |
| Gearbox Type |
24F/12R |
| Number of Forward Gears |
24 |
| Number of Reverse Gears |
12 |
| Maximum Speed Forward, mph (kph) |
18,6 (29,7) |
| Maximum Speed Forward, mph (kph) |
18,3 (29,2) |
| Transmission Model |
Synchro Command |
| Transmission Type |
Partially synchronized with sync shuttle |
| Gearbox Type |
12F/12R |
| Number of Forward Gears |
12 |
| Number of Reverse Gears |
12 |
| Maximum Speed Forward, mph (kph) |
21,2 (34,0) |
| Maximum Speed Forward, mph (kph) |
20,6 (33,0) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Service Brake |
Hydraulic wet disc |
| Front Tire Size |
13.6 R24 |
| Rear Tire Size |
16.9 R34 |
| Hydraulic System Type |
Open center |
| Implement Pump Flow, gpm (Lpm) |
14,5 (54,9) |
| Hydraulic Pressure, Bar (psi) |
190 (2755) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Mechanical, lower link |
| Standard Lift Capacity 24-in behind pin, lb (kg) |
5722 (2600) |
| Optional Lift Capacity 24-in behind pin, lb (kg) |
6350 (2880) |
| Wheelbase (2WD), in (mm) |
92,2 (2340) |
| Wheelbase (4WD), in (mm) |
91,1 (2310) |
| Height (ROPS), in (mm) |
105,5 (2670) |
| Height (Cabin), in (mm) |
84,1 (2130) |
| Overall Width, in (mm) |
72,6 (1840) |
| Front Tread, in (mm) |
56 to 84 (1420 to 2130) |
| Rear Tread, in (mm) |
60 to 84 (1520 to 2130) |
| Weight (2WD ROPS), lb (kg) |
6833 (3198) |
| Weight (2WD Cabin), lb (kg) |
7275 (3300) |
| Weight (4WD ROPS), lb (kg) |
7500 (3410) |
| Weight (4WD Cabin), lb (kg) |
7940 (3600) |
