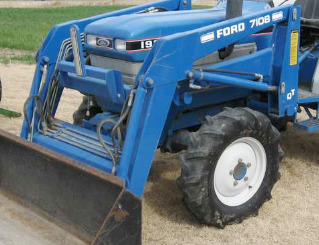

Ford 7108 Front End Loader

The Ford 7108 loader is designed for Ford 1520, 1620, and Ford 1720 tractors. The 7108 loader hydraulic system includes double-acting hydraulic lifting and bucket cylinders. The front end loader has a lift capacity (at pin) of 1150 lb (520 kg) to full height of 95 inches (2400 mm), and breakout force (bucket on ground) of 1995 lb (910 kg).

The bucket dump clearance is 75 inches (1900 mm) at maximum dump angle of 45 degrees. The raising cycle time is 4 sec. from ground line to full height, and bucket dump time is 3.9 seconds.

The Ford 7108 loader can be equipped with 48", 60", and 72" standard material buckets with heaped capacities of 7.5 cu.ft (0.21 cu.m), 12 cu.ft (0.34 cu.m), and 20.3 cu.ft (0.58 cu.m).

Compatible Tractors
Tractor Models Ford 1520, 1620, 1720
Front Tires 6.00x14
Rear Tires 9.50x24
Hydraulic System Flow, gpm (lpm) 6.0 (22.8)
Hydraulic Pressure, bar (psi) 138 (2000)

Loader
Loader Model Ford 7108
Attachment Control Type Hydraulic
Lift Cylinder (Number and Type) 2, Double action
Lift Cylinder Bore, in (mm) 1.77 (45.0)
Lift Cylinder Stroke, in (mm) 19.25 (490)
Bucket Cylinder (Number and Type) 2, Double action
Bucket Cylinder Bore, in (mm) 1.77 (45.0)
Bucket Cylinder Stroke, in (mm) 19.25 (490)

48" Standard Material Bucket
Width, in (mm) 48 (1220)
Inside Height, in (mm) 18 (455)
Depth, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6.0 (0.17)
Capacity (Heaped), cu.ft (m3) 7.5 (0.21)
Weight, lbs (kg) 230 (105)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 20.2 (590)
Capacity (Struck), cu.ft (m3) 10.1 (0.29)
Capacity (Heaped), cu.ft (m3) 12.0 (0.34)
Weight, lbs (kg) 360 (163)

72" Standard Material Bucket
Width, in (mm) 72 (1820)
Inside Height, in (mm) 26.8 (678)
Depth, in (mm) 25.5 (645)
Capacity (Struck), cu.ft (m3) 16.9 (0.48)
Capacity (Heaped), cu.ft (m3) 20.3 (0.58)
Weight, lbs (kg) 365 (165)


Loader Dimensions
Maximum Lift Height, Measured at Pivot Pin, in (mm) 95 (2400)
Clearance at Full Height, Bucket Dumped, in (mm) 75 (1900)
Reach at Maximum Height, in (mm) 22 (557)
Maximum Dump Angle, degrees 45
Reach at Ground, Bucket Level, in (mm) 65 (1650)
Maximum Rollback Angle, degrees 20
Digging Depth, in (mm) 4 (102)
Overall Height in Carrying Position, in (mm) 53 (1340)

Operating Data
Lift Capacity to Maximum Height, At Pivot Pin, lbs (kg) 1150 (520)
Lift Capacity to Maximum Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 875 (400)
Lift Capacity to 59" (1.5m) Height, At Pivot Pin, lbs (kg) 1365 (620)
Lift Capacity to 59" (1.5m) Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 1085 (490)
Breakout Force, At Pivot Pin, lbs (kg) 1995 (910)
Breakout Force, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 1525 (700)
Rollback Force at Maximum Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 2040 (930)

Cycle Times
Raising Time (Ground Level to Max. Height), seconds 4,0
Lowering Time (Max. Height to Ground Level), seconds 2,0
Bucket Dumping Time (Max. Rollback to Max. Dump), seconds 3,9
Bucket Rollback Time (Max. Dump to Max. Rollback), seconds 2,0
