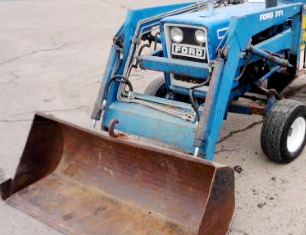

Ford 771 Front End Loader

The Ford 771 loader is available for Ford 1900, 2000, 3000, 4000 tractors. The loader has 2 double acting lifting cylinders, 2 double acting bucket cylinders, and mechanical or hydraulic attachment control.

The Ford 771 loader’s maximum lift height is 94" (2380 mm) for 1900 tractor, 97" (2455 mm) for 2000/3000 tractors, or 104.5" (2645 mm) for 4000 tractor, and clearance with bucket dumped is 75" (1900 mm) for 1900 tractor, 74.5" (1885 mm) for 2000/3000 tractors, or 82" (2075 mm) for 4000 tractor.

The lifting capacity at maximum height (bucket pin) is 1130 lb (512 kg) for 1900 tractor, 1800 lb (816 kg) for 2000/3000 tractors, or 1750 lb (795 kg) for 4000 tractor, and breakout force is 1860 lb (843 kg) for 1900 tractor, 2700 lb (1224 kg) for 2000/3000 tractors, or 2300 lb (1045 kg) for 4000 tractor.

The raising time from ground line to max height is 4.4 seconds (1900 tractor), or 7.1 seconds (2000/3000/4000 tractors), and bucket rollback time is 2.6 seconds (1900 tractor), or 4.1 seconds (2000/3000/4000 tractors). Compatible buckets for the Ford 771: a 60" (1520 mm) standard material bucket, and 78" (1970 mm) high capacity bucket.

Compatible Tractors
Tractor models Ford 1900, 2000, 3000, 4000
Hydraulic system flow, gpm (lpm) 4.0-8.5 (15.2-32.3)
Hydraulic pressure, bar (psi) 173 (2500)

Loader
Loader model Ford 771
Attachment control type Mechanical or hydraulic
Lift cylinder (Number and type) 2, Single action
Bucket cylinder (Number and type) 2, Double action
Weight, lbs (kg) 790 (360)
Counterweight, lbs (kg) 1000 (455)

Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 29 (734)
Height, in (mm) 25 (633)
Capacity (Struck), cu.ft (m3) 14,0 (0,40)
Capacity (Heaped), cu.ft (m3) 17,6 (0,50)
Weight, lbs (kg) 440 (200)

High Capacity Bucket
Width, in (mm) 78 (1970)
Depth, in (mm) 33 (836)
Height, in (mm) 31 (784)
Capacity (Struck), cu.ft (m3) 29,5 (0,84)
Capacity (Heaped), cu.ft (m3) 35,7 (1,02)
Weight, lbs (kg) 635 (290)


Loader Dimensions
Maximum lift height at pivot pin (Ford 1900), in (mm) 94 (2380)
Maximum lift height at pivot pin (Ford 2000/3000), in (mm) 97 (2455)
Maximum lift height at pivot pin (Ford 4000), in (mm) 104,5 (2645)
Reach at maximum height (Ford 1900), in (mm) 23 (580)
Reach at maximum height (Ford 2000/3000), in (mm) 30 (760)
Reach at maximum height (Ford 4000), in (mm) 31,2 (790)
Clearance, bucket dumped (Ford 1900), in (mm) 75 (1900)
Clearance, bucket dumped (Ford 2000/3000), in (mm) 74,5 (1885)
Clearance, bucket dumped (Ford 4000), in (mm) 82 (2075)
Maximum dumping angle (Ford 1900), degrees 40
Maximum dumping angle (Ford 2000/3000), degrees 52
Maximum dumping angle (Ford 4000), degrees 47
Reach, bucket on ground (Ford 1900), in (mm) 54 (1370)
Reach, bucket on ground (Ford 2000/3000), in (mm) 71,5 (1810)
Reach, bucket on ground (Ford 4000), in (mm) 65,6 (1660)
Maximum digging depth (Ford 2000/3000), in (mm) 14 (355)
Maximum digging depth (Ford 4000), in (mm) 7,2 (182)
Rollback angle (Ford 1900), degrees 10
Rollback angle (Ford 2000/3000), degrees 7
Rollback angle (Ford 4000), degrees 6
Height in carrying position (Ford 2000/3000), in (mm) 61,5 (1557)
Height in carrying position (Ford 4000), in (mm) 61,9 (1567)

Operating Data
Lift capacity to maximum height (Ford 1900), lbs (kg) 1130 (512)
Lift capacity to maximum height (Ford 2000/3000), lbs (kg) 1800 (816)
Lift capacity to maximum height (Ford 4000), lbs (kg) 1750 (795)
Breakout force at pivot pin (Ford 1900), lbs (kg) 1860 (843)
Breakout force at pivot pin (Ford 2000/3000), lbs (kg) 2700 (1224)
Breakout force at pivot pin (Ford 4000), lbs (kg) 2300 (1045)

Cycle Times
Raising time to full height (Ford 1900), sec 4,4
Raising time to full height (Ford 2000/4000), sec 7,1
Lowering time (Ford 1900), sec 4,4
Lowering time (Ford 2000/3000), sec 5,9
Lowering time (Ford 4000), sec 6,2
Bucket rollback time (Ford 1900), sec 2,6
Bucket rollback time (Ford 2000/4000), sec 4,1
