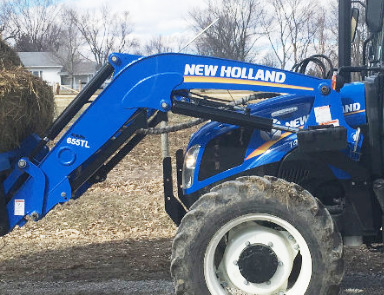

New Holland 655TL Front End Loader

The New Holland 655TL loader is designed to fit New Holland T4.85, T4.95 tractors. The loader has double acting boom and bucket hydraulic cylinders. The New Holland 655TL loader has a maximum lift height of 126" (3188 mm) for NSL models or 125" (3163 mm) for MSL models, and bucket dump clearance of 93.6" (2368 mm) for NSL models or 93" (2353 mm) for MSL models.

The lift capacity (NSL/MSL) is rated at 2478 lbs (1126 kg) or 3179 lbs (1445 kg) to full height at 0.8m from pin, and bucket's breakout force (0.8m from pin) is 3739 lbs (1700 kg) for NSL models and 3860 lbs (1755 kg) for MSL models.

Available buckets for the New Holland 655TL loader: 73" (1850 mm) and 83" (2100 mm) standard material buckets with nominal heaped capacities of 0.78 cu.yd (0.59 m3) and 0.99 cu.yd (0.75 m3), or 73" (1850 mm) and 83" (2100 mm) heavy duty material buckets with nominal heaped capacities of 0.87 cu.yd (0.66 m3) and 1.07 cu.yd (0.81 m3).

Compatible Tractors
Tractor Models New Holland T4.85, T4.95
Front Tires 280/70R20
Rear Tires 420/70R28
Hydraulic System Flow, gpm (lpm) 12.8 (48.5)

Loader
Loader Model NH 655TL
Leveling System Non Self Leveling/Mechanical Self Leveling
Weight, lbs (kg) 1200 (545)

73" Standard Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu. yd (m3) 0.63 (0.49)
Heaped Capacity, cu. yd (m3) 0.78 (0.59)

83" Standard Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu. yd (m3) 0.72 (0.55)
Heaped Capacity, cu. yd (m3) 0.89 (0.75)

73" Heavy Duty Material Bucket
Width, in (mm) 73 (1850)
Struck Capacity, cu. yd (m3) 0.72 (0.55)
Heaped Capacity, cu. yd (m3) 0.87 (0.66)


83" Heavy Duty Material Bucket
Width, in (mm) 83 (2100)
Struck Capacity, cu. yd (m3) 0.90 (0.76)
Heaped Capacity, cu. yd (m3) 1.07 (0.81)

Loader Dimensions
Maximum Lift Height to Pivot Pin (NSL), in (mm) 126 (3188)
Maximum Lift Height to Pivot Pin (MSL), in (mm) 125 (3163)
Clearance with Bucket Dumped (NSL), in (mm) 93.6 (2368)
Clearance with Bucket Dumped (MSL), in (mm) 93 (2353)
Reach at Maximum Lift Height, in (mm) 39.5 (1000)
Digging Depth, in (mm) 8.2 (207)
Maximum Dump Angle, degrees 60
Reach with Bucket on Ground (NSL), in (mm) 90.7 (2295)
Reach with Bucket on Ground (MSL), in (mm) 90.5 (2290)
Maximum Rollback Angle (NSL), degrees 45
Maximum Rollback Angle (MSL), degrees 40

Operating Data
Lift Capacity to Max. Height at 0.8m from Pivot Point (NSL), lbs (kg) 2478 (1126)
Lift Capacity to Max. Height at 0.8m from Pivot Point (MSL), lbs (kg) 3179 (1445)
Lift Capacity to 1.5m Height at 0.8m Forward of Pivot Point (NSL), lbs (kg) 3080 (1400)
Lift Capacity to 1.5m Height at 0.8m Forward of Pivot Point (MSL), lbs (kg) 4665 (2120)
Breakout Force at 0.8m from Pivot Point (NSL), lbs (kg) 3739 (1700)
Breakout Force at 0.8m from Pivot Point (MSL), lbs (kg) 3860 (1755)
