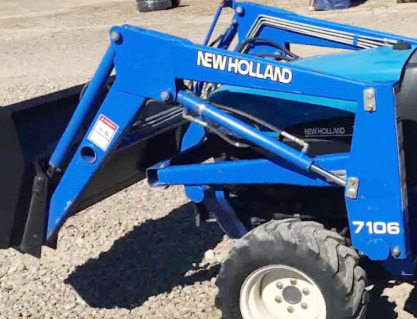

New Holland 7106 Front End Loader

The New Holland 7106 loader is used for New Holland 1120, 1220, New Holland TC18, TC21D tractors. The loader has double acting bucket and boom hydraulic cylinders.

The loader has a lift capacity (at pin) of 850 lbs (390 kg) to maximum height of 77.9" (1980 mm), and bucket's breakout force of 1300 lbs (600 kg). A full dump clearance with a 40 degree maximum dump angle is 62.3" (1580 mm). The raising cycle time is 3.8 seconds from ground line to full height, and bucket dumping time is 3.6 sec.

The New Holland 7106 loader can be equipped with a 48" (1220 mm) standard material bucket with a heaped capacity of 7.5 cu.ft (0.21 m3), or 60" (1520 mm) standard material bucket with a heaped capacity of 12 cu.ft (0.34 m3).

Compatible Tractors
Tractor Models New Holland 1120, 1220, TC18, TC21D
Front Tires 5.00x12
Rear Tires 8.00x16
Hydraulic System Flow, gpm (lpm) 4,5 (17.0)
Hydraulic Pressure, bar (psi) 138 (2000)

Loader
Loader Model New Holland 7106
Attachment Type Pin-On
Attachment Control Hydraulic
Boom Cylinder Two, Double action
Bucket Cylinder Two, Double action

4-ft Standard Material Bucket
Width, in (mm) 48 (1220)
Inside Height, in (mm) 18 (455)
Depth, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6.0 (0.17)
Capacity (Heaped), cu.ft (m3) 7.5 (0.21)
Weight, lbs (kg) 230 (105)

5-ft Standard Material Bucket
Width, in (mm) 60 (1520)
Inside Height, in (mm) 25.5 (645)
Depth, in (mm) 20.2 (590)
Capacity (Struck), cu.ft (m3) 10.1 (0.29)
Capacity (Heaped), cu.ft (m3) 12.0 (0.34)
Weight, lbs (kg) 360 (163)


Loader Dimensions
Maximum Lift Height, in (mm) 77.9 (1980)
Clearance with Bucket Dumped, in (mm) 62.3 (1580)
Reach at Maximum Height, in (mm) 18.5 (420)
Maximum Dump Angle, deg 40
Reach with Bucket on Ground, in (mm) 49.8 (1265)
Bucket Rollback Angle, deg 18
Digging Depth, in (mm) 4.8 (122)
Overall Height in Carry Position, in (mm) 46.5 (1180)
Rollback Angle at Full Height, deg 117
Length of Bucket, in (mm) 18.1 (460)

Operating Data
Lift Capacity to Maximum Height, At Pivot Pin, lbs (kg) 850 (390)
Lift Capacity to Maximum Height, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 600 (270)
Breakout Force, At Pivot Pin, lbs (kg) 1300 (600)
Breakout Force, 19.7" (0.5m) Forward of Pivot Pin, lbs (kg) 930 (420)

Cycle Times
Raising Time, seconds 3,8
Lowering Time, seconds 2,0
Bucket Dumping Time, seconds 3,6
Bucket Rollback Time, seconds 1,9
