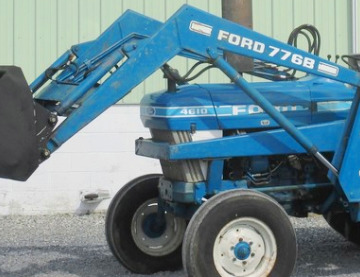

Ford 776B Front End Loader

The Ford 776B loader is used for Ford 2110, 2910, 3910, and Ford 4610 tractors. The loader has double acting lift and bucket hydraulic cylinders.

The Ford 776B loader has a max lift height of 124" (3137 mm) at pin and clearance with bucket dumped of 102" (2580 mm).

The lift capacity is rated at 2500 lbs (1135 kg) to max height, and boom breakout force is 3750 lbs (1700 mm). The boom raising time is 6.7 seconds from ground line to max height, and bucket rollback time is 3 sec.

The Ford 776B loader is compatible with the following buckets: a 4-ft bucket with a rated capacity of 7.5 cu.ft (0.21 cu.m), 5-ft bucket with a rated capacity of 9.5 cu.ft (0.27 cu.m), and 6-ft bucket with a rated capacity of 11.5 cu.ft (0.33 cu.m).

Compatible Tractors
Tractor models Ford 2110, 2910, 3910, 4610
Front tires 6,00-16
Rear tires 14,9-24
Hydraulic system flow, gpm (lpm) 8.0 (30.5)
Hydraulic pressure, bar (psi) 174 (2500)

Loader
Loader model Ford 776B
Loader type Quick attach
Attachment control type Mechanical / Hydraulic
Lift cylinder (Number and type) Two, Double action
Bucket cylinder (Number and type) Two, Double action
Weight, lbs (kg) 1260 (570)

4-ft Standard Material Bucket
Width, in (mm) 48 (1220)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 6,0 (0,17)
Capacity (Heaped), cu.ft (m3) 7,5 (0,21)
Weight, lbs (kg) 230 (105)

5-ft Standard Material Bucket
Width, in (mm) 60 (1520)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 7,5 (0,21)
Capacity (Heaped), cu.ft (m3) 9,5 (0,27)
Weight, lbs (kg) 260 (118)


6-ft Standard Material Bucket
Width, in (mm) 72 (1820)
Depth, in (mm) 18 (455)
Height, in (mm) 19 (480)
Capacity (Struck), cu.ft (m3) 9,0 (0,26)
Capacity (Heaped), cu.ft (m3) 11,5 (0,33)
Weight, lbs (kg) 290 (132)

Loader Dimensions
Maximum lift height at pivot pin, in (mm) 124 (3137)
Reach at maximum height, in (mm) 26 (658)
Clearance, bucket dumped, in (mm) 102 (2580)
Maximum dumping angle, degrees 40
Reach, bucket on ground, in (mm) 75 (1898)
Maximum digging depth, in (mm) 7.5 (190)
Rollback angle, degrees 6

Operating Data
Lift capacity to maximum height, lbs (kg) 2500 (1135)
Lift capacity to max. height, 19.7" (0.5m) forward of pivot pin, lbs (kg) 1750 (795)
Breakout force at pivot pin, lbs (kg) 3750 (1700)
Breakout force, 19.7" (0.5m) forward of pivot pin, lbs (kg) 2625 (1190)

Cycle Times
Raising time to full height, sec 6,7
Lowering time, sec 4,0
Bucket rollback time, sec 3,0
