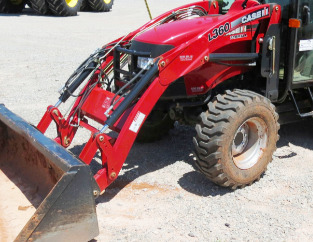

Case L360 Front End Loader

The Case IH L360 loader fits Case IH Farmall 45C, Farmall 55C tractors.

The loader is equipped with double acting bucket and lift hydraulic cylinders. The Case IH L360 loader has a lifting capacity (at pin) of 2500 lbs (1134 kg) to full height of 112.3" (2852 mm), and a bucket's breakout force of 5000 lbs (2268 kg).

The bucket dump clearance is 85.2" (2164 mm) at maximum dump angle of 49 degrees.

The Case IH L360 loader can be equipped with the following buckets: a 72" (1830 mm) standard material bucket with a rated capacity of 21.3 cu.ft (0.61 m3), or 72" (1830 mm) high volume bucket with a rated capacity of 32.9 cu.ft (0.94 m3).

Compatible Tractors
Tractor Models Farmall 45C, Farmall 55C
Front Tires 8.00x16
Rear Tires 14.9x24
Hydraulic System Flow, gpm (lpm) 9.8 (37.1)

Loader
Loader Model Case L360 NSL
Leveling System Non-self leveling
Weight, lb (kg) 650 (295)

Standard Material Bucket
Width, in (mm) 72 (1830)
Struck Capacity, cu.ft (m3) 16.9 (0.48)
Heaped Capacity, cu.ft (m3) 21.3 (0.61)
Weight, lb (kg) 455 (207)

High Volume Bucket
Width, in (mm) 72 (1800)
Struck Capacity, cu.ft (m3) 27.3 (0.78)
Heaped Capacity, cu.ft (m3) 32.9 (0.94)
Weight, lb (kg) 510 (232)


Loader Dimensions
Maximum lift height to bucket pivot pin, in (mm) 112.3 (2852)
Clearance with bucket dumped, in (mm) 85.2 (2164)
Reach at maximum lift height, in (mm) 32 (813)
Maximum dump angle, degrees 49
Maximum rollback angle, degrees 39
Digging Depth, in (mm) 4.9 (125)

Operating Data
Lift Capacity to maximum height, at bucket pivot pin, lbs (kg) 2500 (1134)
Lift Capacity to max. height, 19.7" (500 mm) forward of bucket pivot pin, lbs (kg) 1830 (830)
Breakout force, at pivot pin, bucket at ground, lbs (kg) 5000 (2268)
Breakout force, 19.7" (500 mm) forward of bucket pivot pin at ground, lbs (kg) 3114 (1412)
