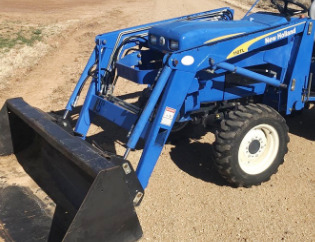

New Holland 110TL Front End Loader

The New Holland 110TL front end loader is available for NH Workmaster 35, Workmaster 40 tractors. The front end loader hydraulic system includes double-acting bucket and lift hydraulic cylinders.

The front end loader has a lifting capacity (at bucket pin) of 1262 lbs (574 kg) to full height of 100.5" (2553 mm), and boom breakout force of 3338 lbs (1517 kg). The clearance with bucket dumped is 84" (2134 mm) at max dump angle of 40 degrees.

The New Holland 110TL loader is compatible with the following buckets: a 60" (1520 mm) standard material bucket with a rated capacity of 0.42 cu.yd (0.32 cu.m), or 68 (1720 mm) standard material bucket with a rated capacity of 0.44 cu.yd (0.33 cu.m).

Compatible Tractors
Tractor Models Workmaster 35, 40
Front Tires 8.3x24
Rear Tires 13.6x28
Hydraulic System Flow, gpm (lpm) 11.6 (44.0)

Loader
Loader Model NH 110TL
Leveling System Non-self leveling
Weight (w/o Bucket), lbs (kg) 516 (234)

60" Standard Material Bucket
Width, in (mm) 60 (1520)
Struck Capacity, cu. yd (m3) 0.34 (0.26)
Heaped Capacity, cu. yd (m3) 0.42 (0.32)

68" Standard Material Bucket
Width, in (mm) 68 (1720)
Struck Capacity, cu. yd (m3) 0.37 (0.28)
Heaped Capacity, cu. yd (m3) 0.44 (0.33)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 100.5 (2553)
Clearance with Bucket Dumped, in (mm) 84.0 (2134)
Reach at Maximum Lift Height, in (mm) 12.8 (324)
Digging Depth, in (mm) 4.0 (102)
Maximum Dump Angle, degrees 40
Maximum Rollback Angle, degrees 23

Operating Data
Lift Capacity to Max. Height at Pivot Point, lbs (kg) 1262 (574)
Lift Capacity to Max. Height at 0.5m from Bucket Pivot Point, lbs (kg) 863 (392)
Lift Capacity to 1.5m Height at Pivot Point, lbs (kg) 1843 (838)
Lift Capacity to 1.5m Height at 0.5m from Bucket Pivot Point, lbs (kg) 1540 (700)
Max. Breakout Force at Bucket Pivot Point, lbs (kg) 3338 (1517)
Max. Breakout Force at 0.5m from Bucket Pivot Point, lbs (kg) 2431 (1105)
