International Harvester 856
The

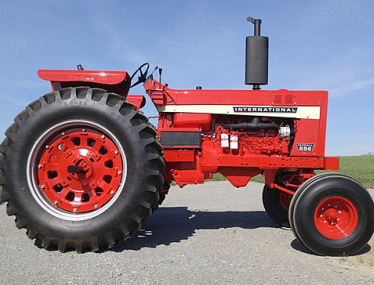

International Harvester 856 tractor was manufactured from 1967 to 1971.
The components of IH 856 powerline system: The International Harvester D407 4-stroke
6-cylinder direct injection diesel engine, and sliding gear transmission with 8
forward and 4 reverse gears, or 16x8 Torque Amplifier partial powershift
transmission. A 6.7L diesel engine power rating is 105 hp (77.8 kW) at 2400 rpm.
Max. travel speed (forward/reverse): 15.6 mph (25.1 km/h) and 4.9 mph
(7.8 km/h). The open center hydraulic system includes a gear pump with
a rated capacity of 12 gpm (45.5 lpm). The hydraulic system
pressure is 2500 psi (172 bar).
The 2WD models are equipped with 11.0x16 front tires and 18.4-38 rear
tires. The 11Lx15 front tires and 18.4-38 rear tires are used for 4WD
tractors. The wheel base is 105 inches (2660 mm).
| Engine Model |
International Harvester D-407 |
| Engine Type |
4-stroke, six-cylinder diesel |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
406.9 (6.70) |
| Engine Bore, in (mm) |
4.32 (110.0) |
| Engine Stroke, in (mm) |
4.63 (117.0) |
| Aspiration |
Natural |
| Rated Engine Power, hp (kW) |
105.0 (77.8) |
| Rated Engine Speed, rpm |
2400 |
| Compression |
17:1 |
| Fuel System |
Direct injection |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
13.2 (12.5) |
| Coolant Capacity, qts (L) |
24.0 (22.7) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| Engine Model |
International Harvester C-301 |
| Engine Type |
4-stroke, six-cylinder gasoline |
| Number of Cylinders |
6 |
| Displacement, cu in (L) |
301 (4.90) |
| Engine Bore, in (mm) |
3.82 (97.0) |
| Engine Stroke, in (mm) |
4.39 (112.0) |
| Rated Engine Power, hp (kW) |
105.0 (77.8) |
| Rated Engine Speed, rpm |
2400 |
| Compression |
7.7:1 |
| Air Cleaner |
Dual dry elements |
| Fuel Tank Capacity, gal (L) |
42.0 (159.0) |
| Oil Capacity, qts (L) |
9.0 (8.5) |
| Coolant Capacity, qts (L) |
21.0 (19.9) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
95.0 (70.8) |
| PTO Clutch Type |
Dry disc |
| PTO Speeds, rpm |
540/1000 |
| Transmission Type |
Sliding gear |
| Gearbox Type |
8F/4R |
| Number of Forward Gears |
8 |
| Number of Reverse Gears |
4 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.6 (25.1) |
| Maximum Reverse Speed, mph (kph) |
4.9 (7.8) |
| Transmission Type |
Torque Amplifier |
| Gearbox Type |
16F/8R, partial powershift |
| Number of Forward Gears |
16 |
| Number of Reverse Gears |
8 |
| Clutch Type |
Dry disc |
| Maximum Forward Speed, mph (kph) |
15.6 (25.1) |
| Maximum Reverse Speed, mph (kph) |
4.9 (7.8) |
| Drive Wheels |
2WD/4WD |
| Steering Configuration |
Front Steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Differential hydraulic disc |
| Front Tire Size |
11L-15 |
| Rear Tire Size |
18.4-38 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
12.0 (45.5) |
| Hydraulic Pressure, Bar (psi) |
172 (2500) |
| 3-Point Hitch Category |
2 |
| Wheelbase, in (mm) |
105 (2660) |
| Length, in (mm) |
164 (4160) |
| Height (Steering Wheel), in (mm) |
86 (2180) |
| Turning Radius, in (mm) |
158 (4000) |
| Weight (Diesel), lb (kg) |
10290 (4665) |
| Weight (Gasoline), lb (kg) |
12035 (5460) |
