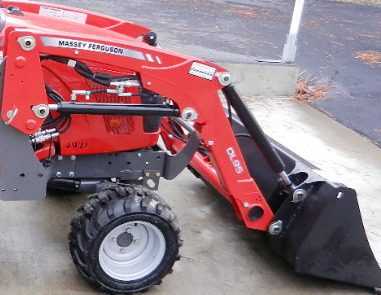

Massey Ferguson DL95 Loader

The Massey Ferguson DL95 non-self leveling loader was designed for MF GC1705, GC1710, GC1715, and GC1720 tractors.

The front end loader hydraulic system includes double-acting bucket cylinders with diameter of 1.75" (45 mm) and lift hydraulic cylinders with diameter of 1.6" (40 mm). The 48" standard material bucket has a nominal heaped capacity of 7.02 cu.ft (0.20 m3).

The loader’s max lift height is 72.8" (1850 mm) at pin and digging depth is 2.8" (70 mm). The loader has a lifting capacity of 830 lb (377 kg) at full height (bucket pin), boom breakout force of 1320 lb (600 kg), and maximum rollback force of 2120 lb (960 kg).

Compatible Tractors
Tractor Models MF GC1705, GC1710, GC1715, GC1720
Front Tires 18x8.5-10
Rear Tires 26x12.00-12
Hydraulic System Flow, gpm (lpm) 4.8 (15.5)
Hydraulic Pressure, psi 1914

Loader
Loader Model Massey Ferguson DL95 NSL
Leveling Configuration Non-self leveling
Lift Cylinder Two, double acting
Lift Cylinder Diameter, in (mm) 1.6 (40)
Bucket Cylinder Two, double acting
Bucket Cylinder Diameter, in (mm) 1.75 (45)
Tool Attachment Pin Type

Standard Material Bucket
Width, in (mm) 48 (1220)
Struck Capacity, cu. ft (m3) 5,67 (0,16)
Heaped Capacity, cu. ft (m3) 7,02 (0,20)


Loader Dimensions
Maximum Lift Height to Pivot Pin, in (mm) 72.8 (1850)
Digging Depth, in (mm) 2.8 (70)
Maximum Dump Angle, degrees 50
Maximum Rollback Angle, degrees 25

Operating Data
Lift Capacity to Maximum Height at Pivot Pin, lbs (kg) 830 (377)
Lift Capacity to Maximum Height at 500 mm Forward of Pivot Pin, lbs (kg) 580 (270)
Breakout Force at Pivot Pin, lbs (kg) 1320 (600)
Breakout Force at 500 mm Forward of Pivot Pin, lbs (kg) 920 (420)
Maximum Rollback Force, lbs (kg) 2120 (960)
