New Holland TC24DA Tractor
The

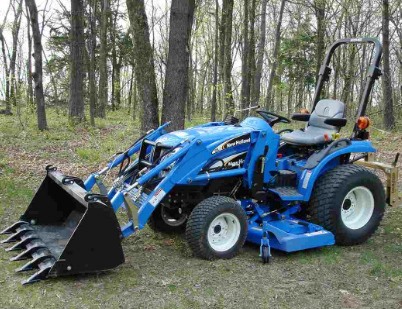

New Holland TC24DA is a Boomer TC-A series compact utility tractor. This model
manufactured from 2003 to 2005.
The components of NH TC24DA powerline system: Shibaura S773L 3-cylinder
in-line overhead valve water-cooled diesel engine and hydrostatic
transmission with a 2-range forward and reverse gears. A 1,1L engine power is
24 Hp (17,9 kW) at 2600 rpm. The maximum travel speed - 9,3 kph (14,9 km/h). The open center hydraulic system used a gear pump with
a rated capacity
of 4,9 gpm (18,5 lpm). The hydraulic system pressure is 2200 psi.
The New
Holland TC24DA has a four-wheel drive system. The rear tire size: 8.00x16,
front tire size: 6.00x12. The tractor can be equipped with
New Holland 12LA front end
loader with a maximum lifting height of 85.5" (2170 mm) and lift capacity to max height
of 1090 lbs (494 kg) at pivot pins.
| Engine Model |
Shibaura S773L |
| Engine Type |
Diesel, four cycle, water-cooled, in-line overhead valve |
| Number of Cylinders |
3 |
| Displacement, cu in (L) |
68,9 (1,13) |
| Engine Bore, in (mm) |
3,03 (77,0) |
| Engine Stroke, in (mm) |
3,20 (81,0) |
| Rated Engine Power, hp (kW) |
24,0 (17,9) |
| Maximum Engine Power, hp (kW) |
27,9 (20,5) |
| Rated Engine Speed, rpm |
2600 |
| Compression Ratio |
23.5:1 |
| Firing Order |
1-2-3 |
| Fuel Pump Type |
In-Line |
| Combustion Type |
Swirl chamber |
| Fuel Tank Capacity, gal (L) |
5,2 (20,0) |
| Oil Capacity, qts (L) |
5,2 (4,9) |
| Coolant Capacity, qts (L) |
2,0 (1,9) |
| Electrical System Rating, Volts |
12 |
| Alternator Rating, Amps |
40 |
| Battery Rating, (V-A) |
12-36 |
| PTO Operational Type |
Live |
| PTO Horsepower, hp (kW) |
18,5 (13,8) |
| Rear PTO Speed, rpm |
540 |
| Mid-PTO Speed, rpm |
2000 |
| Transmission Type |
Hydrostatic (HST) |
| Gears |
2-Range forward and reverse |
| Maximum Speed (Forward), mph (kph) |
9,3 (14,9) |
| Drive Wheels |
4WD MFWD |
| Steering Configuration |
Front Steer |
| Steering System |
Power |
| Service Brake |
Wet Disc |
| Front Tire Size (Std) |
6.00x12 |
| Rear Tire Size (Std) |
8.00x16 |
| Front Tire Size (Opt) |
23x8.50-12 |
| Rear Tire Size (Opt) |
12.0x6.5 |
| Hydraulic System Type |
Open Center |
| Implement Pump Type |
Gear |
| Implement Pump Flow, gpm (Lpm) |
4,9 (18,5) |
| Steering Pump Flow, gpm (Lpm) |
2,8 (10,5) |
| Total Flow, gpm (Lpm) |
7,7 (29,0) |
| Number of Standard Remote Valves |
2 |
| 3-Point Hitch Category |
1 |
| Standard Lift Capacity 24" (600mm) behind pin, lb (kg) |
1600 (740) |
| Wheelbase, in (mm) |
55,3 (1400) |
| Length, in (mm) |
106,3 (2700) |
| Height, in (mm) |
81,2 (2060) |
| Overall Width, in (mm) |
44,7 (1130) |
| Ground Clearance, in (mm) |
10,7 (270) |
| Front Tread, in (mm) |
33,3-33,6 (840-850) |
| Rear Tread, in (mm) |
35,2 (890) |
| Weight, lb (kg) |
1723 (780) |
| Loader Model |
New Holland 12LA |
| Maximum Lift Height to Pivot Pin, in (mm) |
85.5 (2170) |
| Clearance with Bucket Dumped, in (mm) |
62 (1570) |
| Reach at Maximum Lift Height, in (mm) |
23.5 (590) |
| Maximum Dump Angle, degrees |
48 |
| Digging Depth, in (mm) |
2.5 (63.5) |
| Maximum Rollback Angle, degrees |
32 |
| Lift Capacity to Max. Height at Pin, lbs (kg) |
1090 (496) |
| Lift Capacity to Max. Height at 0.5m from Pin, lbs (kg) |
750 (341) |
| Max. Breakout Force at Pin, lbs (kg) |
1720 (782) |
| Max. Breakout Force at 0.5m from Pin, lbs (kg) |
1220 (555) |
| Bucket Width (Standard), in (mm) |
48 (1220) |
| Bucket Width (High Capacity), in (mm) |
54 (1350) |
| Loader Weight (w/o Bucket), lbs (kg) |
490 (223) |
