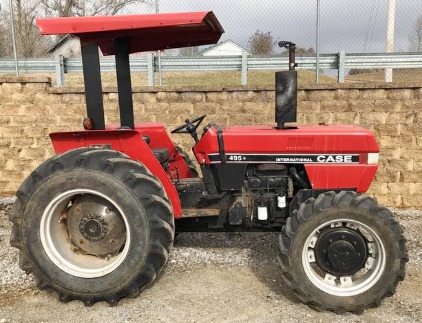

Case IH 495 Tractor
The
Case IH 495 is a 2WD/4WD utility tractor from 95-series. The model was
manufactured between 1991 and 1994. The Case IH 495 tractor is powered by 179
cubic inches (2.9 L) Case D179 four cycle three-cylinder liquid-cooled diesel
engine with a rated power of 53 Hp (39.5 kW) and 182 Nm (134.2 lb-ft) of peak
torque at 1400 rpm.
The Case IH 495 was fitted with two types of transmission. Type 1: 8x4
partially synchronized transmission. Type 2: 16x8 partial power shift
transmission. The max forward speed - 15,6 mph (25,1 kph), max
reverse speed - 4.9 mph (7.8 kph).
The open center hydraulic system used
a gear pump with fluid flow rate of 15.6 gpm (59.2 lpm). The rear lift
capacity is 2340 lbs (1060 kg). The Case IH 495 was equipped with
6.00x16 front tires and 14.9x24 rear tires. The wheelbase is 79,8 in
(2025 mm). The tractor is compatible with
Case 2250 front end loader.
The loader has a lift capacity to full height of 2500 lbs (1135 kg) and
breakout force of 3500 lbs (1587 kg).
Engine Model |
Case D-179 |
Engine Type |
4-stroke, 3-cylinder diesel |
Number of Cylinders |
Three |
Displacement, cu in (L) |
179 (2,9) |
Engine Bore, in (mm) |
3,88 (99,0) |
Engine Stroke, in (mm) |
5,06 (129,0) |
Aspiration |
Natural |
Rated Engine Power, hp (kW) |
53,0 (39,5) |
Rated Engine Speed, rpm |
2200 |
Maximum Torque, Nm (ft-lbs) |
182 (134,2) |
Torque Speed, rpm |
1400 |
Idle Speed, rpm |
700-2400 |
Compression |
15:1 |
Fuel Tank Capacity, gal (L) |
20,0 (75,7) |
Oil Capacity, qts (L) |
8,2 (7,8) |
Coolant Capacity, qts (L) |
12,0 (11,4) |
Electrical System Rating, Volts |
12 |
Charging System |
Alternator |
Alternator Rating, Amps |
45 |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
42,0 (31,3) |
PTO Speeds, rpm |
540 |
PTO / Engine Speeds, rpm |
540/1936 |
Transmission Type |
8F/4R, Partially synchronized |
Number of Forward Gears |
8 |
Number of Reverse Gears |
4 |
Clutch Type |
Dry disc |
Maximum Forward Speed, mph (kph) |
15,6 (25,1) |
Maximum Reverse Speed, mph (kph) |
4,9 (7,8) |
Transmission Type |
16F/8R, Partial power shift |
Number of Forward Gears |
16 |
Number of Reverse Gears |
8 |
Maximum Forward Speed, mph (kph) |
15,6 (25,1) |
Maximum Reverse Speed, mph (kph) |
4,9 (7,8) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Hydrostatic power |
Service Brake |
Hydraulic wet disc |
Front Tire Size |
6.00-16 |
Rear Tire Size |
14.9-24 |
Hydraulic System Type |
Open Center |
Implement Pump Flow, gpm (Lpm) |
15,6 (59,2) |
Hydraulic Capacity, gal (L) |
9,0 (34,1) |
Number of Standard Remote Valves |
1 |
3-Point Hitch Category |
2/1 |
Standard Lift Capacity at lift pin, lb (kg) |
2340 (1060) |
Wheelbase, in (mm) |
79,8 (2025) |
Length, in (mm) |
136 (3450) |
Height, in (mm) |
93,5 (2370) |
Overall Width, in (mm) |
66 (1670) |
Ground Clearance (2WD), in (mm) |
22,1 (560) |
Ground Clearance (4WD), in (mm) |
14 (350) |
Weight (2WD), lb (kg) |
5200 (2350) |
Weight (4WD), lb (kg) |
6090 (2760) |
