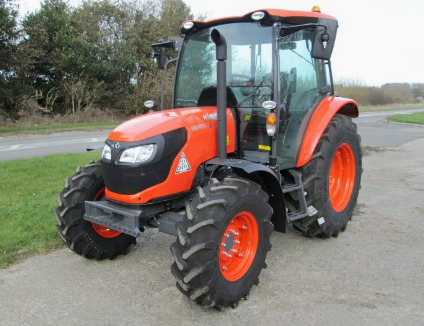

Kubota M4072 Tractor
The
Kubota M4072 is a 4WD 4x4 utility tractor from the M4002 series. This model
manufactured from 2018. The M4072 tractor is powered by Kubota V3307-CRS-TE4
four-stroke 4-cylinder direct injection diesel engine with max. output power of
74 Hp (55.2 kW) and 265 Nm (196 lb-ft) of max torque at 1500 rev/min.
The Kubota M4072 is fitted with two transmission options: 6-speed
synchronized transmission with 18 forward and 16 reverse gears, or 36x36
Dual speed transmission. Max. travel speed (forward/reverse): 24.9 mph
(40 km/h). The closed center hydraulic system used a piston pump with
rated capacity of 16.6 gal/min (62.8 l/min).
The rear lift capacity is
5510 lbs (2500 kg) at pin. The Kubota M4072 tractor fitted with
320/85R20 front tires and 420/85R30 rear tires. The wheelbase is 84.1
inches (2130 mm). The tractor is compatible with Kubota LA1365 front end
loader.
| Engine Model |
Kubota V3307-CRS-TE4 |
| Engine Type |
4-Stroke, 4-cylinder direct injection diesel |
| Number of Cylinders |
4 |
| Displacement, cu in (L) |
203.3 (3.30) |
| Engine Bore, in (mm) |
3.70 (94.0) |
| Engine Stroke, in (mm) |
4.70 (119.0) |
| Aspiration |
Natural |
| Maximum Engine Power, hp (kW) |
74.0 (55.2) |
| Rated Engine Speed, rpm |
2400 |
| Low Idle Speed, rpm |
775-825 |
| Compression Ratio |
20:1 |
| Firing Order |
1-3-4-2 |
| Emissions Level |
Tier 4 |
| Fuel Injection Pump |
Bosch PFR4KZ |
| Combustion Chamber |
Direct injection |
| Lubricating System |
Forced lubrication by trochoid pump |
| Valve Clearance, in (mm) |
0.005-0.007 (0.13-0.17) |
| Fuel Tank Capacity (ROPS), gal (L) |
18.5 (70.0) |
| Fuel Tank Capacity (Cab), gal (L) |
23.8 (90.0) |
| Oil Capacity, qts (L) |
12.7 (12.0) |
| Coolant Capacity, qts (L) |
10.6 (10.0) |
| Electrical System Rating, Volts |
12 |
| Charging System |
Alternator |
| PTO Operational Type |
Independent |
| PTO Horsepower, hp (kW) |
64.0 (47.5) |
| PTO Clutch Type |
Electro-hydraulic wet disc |
| PTO Speed (Std), rpm |
540/540E |
| PTO Speed (Opt), rpm |
540/1000 |
| Transmission Type |
6-Speed synchronized |
| Gearbox Type |
18F/18R |
| Number of Forward Gears |
18 |
| Number of Reverse Gears |
18 |
| Shuttle Shift |
Electro-hydraulic shuttle |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
24.9 (40.0) |
| Maximum Reverse Speed, mph (kph) |
24.9 (40.0) |
| Transmission Type |
Dual Speed |
| Gearbox Type |
36F/36R |
| Number of Forward Gears |
36 |
| Number of Reverse Gears |
36 |
| Shuttle Shift |
Electro-hydraulic shuttle |
| Clutch Type |
Wet disc |
| Maximum Forward Speed, mph (kph) |
24.9 (40.0) |
| Maximum Reverse Speed, mph (kph) |
24.9 (40.0) |
| Drive Wheels |
4WD 4x4 |
| Steering Configuration |
Front steer |
| Steering System |
Hydrostatic power |
| Brakes Type |
Hydraulic wet disc |
| Front Tire Size |
320/85R20 |
| Rear Tire Size |
420/85R30 |
| Front Tread (ROPS), in (mm) |
57.1-60.4 (1450-1530) |
| Rear Tread (ROPS), in (mm) |
56.3-68.1 (1430-1720) |
| Front Tread (Cab), in (mm) |
53.7-55.7 (1360-1410) |
| Rear Tread (Cab), in (mm) |
60.2-68.7 (1520-1740) |
| Hydraulic System Type |
Closed center |
| Implement Pump Flow, gpm (Lpm) |
16.6 (62.8) |
| Number of Standard Remote Valves |
2/3 |
| 3-Point Hitch Type |
Quick-hitch lower link ends |
| 3-Point Hitch Category |
2 |
| Draft Sensing or Lift Control |
Position and draft control |
| Standard Lift Capacity at lift pin, lb (kg) |
5510 (2500) |
| Wheelbase, in (mm) |
84.1 (2130) |
| Overall Length, in (mm) |
145.7 (3700) |
| Height (Cab), in (mm) |
101.6 (2580) |
| Width (ROPS), in (mm) |
72.8 (1840) |
| Width (Cab), in (mm) |
76.8 (1950) |
| Weight (ROPS), lb (kg) |
5665 (2570) |
| Weight (Cab), lb (kg) |
6700 (3040) |
