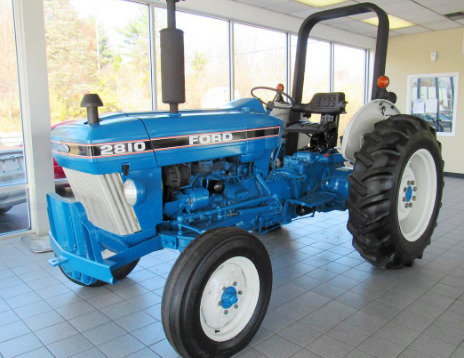

Ford 2810 Tractor
The
Ford 2810 is a two-wheel drive or four-wheel drive utility tractor. This model
was manufactured from 1983 to 1990. The components of Ford 2810 powerline
system: a 158 cu.in (2.6 L) Ford vertical three-cylinder water-cooled diesel
engine with a rated power of 34.3 hp (25.6 kW) and 8x2 Dual Range transmission,
or mechanical shuttle transmission with 6 forward and 4 reverse gears.
Max. forward speed - 18.5 mph (29.8 km/h), max. reverse speed - 16.1 mph
(25.9 km/h). The open center hydraulic system used a gear pump with a
rated capacity of 7.7 gpm (29.2 lpm). The main relief pressure is 173
bar (2500 psi).
The 2-wheel drive models are equipped with 6.00x16 front tyres and
13.6x28 rear tyres. The 8.3x24 front tyres and 13.6x28 rear tyres fit
4-wheel drive tractors. The wheelbase is 77.5" (1960 mm) for models with
2WD and 84.1" (2130 mm) for models with 4WD.
The Ford 2810 is compatible with a Ford 776A loader with lift capacity
to maximum height of 2500 lbs (1134 kg), Ford 776B loader with breakout
force of 3750 lbs (1701 kg), or Ford 776F loader with breakout force of
4300 lbs (1950 kg).
Engine Model |
Ford |
Engine Type |
Vertical, 3-cylinder, water cooled diesel |
Number of Cylinders |
3 |
Displacement, cu in (L) |
158 (2.6) |
Engine Bore, in (mm) |
4.20 (107.0) |
Engine Stroke, in (mm) |
3.80 (97.0) |
Maximum Engine Power, hp (kW) |
36.5 (27.2) |
Rated Engine Power, hp (kW) |
34.3 (25.6) |
Rated Engine Speed, rpm |
2000 |
Maximum Torque, Nm (ft-lbs) |
137 (102) |
Torque Speed, rpm |
1400 |
Compression |
17.3:1 |
Firing Order |
1-2-3 |
Air Cleaner |
Dual paper elements |
Fuel Tank Capacity (2WD), gal (L) |
13.0 (49.2) |
Fuel Tank Capacity (4WD), gal (L) |
16.0 (60.5) |
Oil Capacity, qts (L) |
7.0 (6.6) |
Coolant Capacity, qts (L) |
11.0 (10.4) |
Electrical System Rating, Volts |
12 |
Battery Rating, A/h |
51 |
Charging System |
Alternator |
Alternator Rating, Amps |
32 |
PTO Operational Type |
Independent |
PTO Horsepower, hp (kW) |
32.0 (23.9) |
PTO Speed, rpm |
540 |
PTO / Engine Speed, rpm |
540/1800 |
Transmission Type |
Dual Range |
Gearbox Type |
8F/2R |
Number of Forward Gears |
8 |
Number of Reverse Gears |
2 |
Clutch Type |
Dry disc |
Clutch Disc Diameter, in (mm) |
13 (330) |
Oil Capacity, qts (L) |
12.7 (12.0) |
Maximum Forward Speed, mph (kph) |
18.5 (29.8) |
Maximum Reverse Speed, mph (kph) |
8.9 (14.3) |
Transmission Type |
Mechanical shuttle |
Gearbox Type |
6F/4R |
Number of Forward Gears |
6 |
Number of Reverse Gears |
4 |
Maximum Forward Speed, mph (kph) |
17.9 (28.8) |
Maximum Reverse Speed, mph (kph) |
16.1 (25.9) |
Drive Wheels |
2WD/4WD |
Steering Configuration |
Front Steer |
Steering System |
Manual / Power assist (Optional) |
Service Brake |
Drum type |
Front Tire Size (2WD) |
6.0-16 |
Front Tire Size (4WD) |
8.3-24 |
Rear Tire Size |
13.6-28 |
Front Tread (2WD), in (mm) |
56-72 (1420-1820) |
Front Tread (4WD), in (mm) |
52-80 (1320-2030) |
Rear Tread, in (mm) |
56-80 (1420-2030) |
Hydraulic System Type |
Open center |
Implement Pump Flow, gpm (Lpm) |
7.7 (29.2) |
Hydraulic Pressure, Bar (psi) |
173 (2500) |
Hydraulic System Capacity, gal (L) |
12.2 (45.8) |
Steering System Capacity, qts (L) |
3.6 (3.4) |
3-Point Hitch Category |
1 |
Draft Sensing or Lift Control |
Position and draft control |
Standard Lift Capacity at lift pin, lb (kg) |
2940 (1330) |
Wheelbase (2WD), in (mm) |
77.5 (1960) |
Wheelbase (4WD), in (mm) |
84.1 (2130) |
Length, in (mm) |
127.2 (3230) |
Height (Hood), in (mm) |
58.8 (1490) |
Height (ROPS), in (mm) |
93.7 (2370) |
Overall Width, in (mm) |
68.4 (1730) |
Ground Clearance (2WD), in (mm) |
21.5 (540) |
Ground Clearance (4WD), in (mm) |
13.1 (330) |
Operating Weight (2WD), lb (kg) |
4420 (2000) |
Operating Weight (4WD), lb (kg) |
4995 (2265) |
