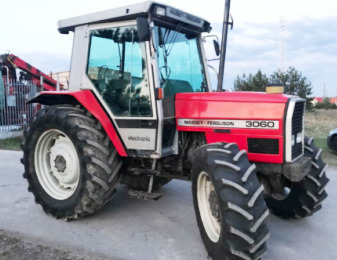

Massey Ferguson 3060 Tractor
The
Massey Ferguson 3060 is a two-wheel drive or four-wheel drive farm tractor. This
model was manufactured between 1986 and 1992. The Massey Ferguson 3060 is
powered by Perkins A4.248S 4-cylinder liquid-cooled naturally aspirated diesel
engine with a rated power of 80 hp (59.7 kW) and 280 Nm (207 lb-ft) of max
torque at 1400 rpm.
The MF 3060 is fitted with 2 transmission options: a 16x16 (24x24 with
creeper) fully synchronized transmission and SpeedShift transmission
with 32 forward and 32 reverse gears (48x48 with creeper).
Max. forward speed - 24.3 mph (39.1 km/h), max. reverse speed - 24.2 mph
(38.9 km/h). The open center hydraulic system used a gear pump with
fluid flow rate of 13.2 gpm (50 lpm). The main relief pressure is 180
bar (2600 psi). The Massey Ferguson 3060 was equipped with a hydrostatic
steering with telescopic steering column, hydraulic wet disc brakes,
12.4x24 front tires, and 18.4-30 rear tires. The wheel base is 93.3"
(2371 mm) for 2WD models and 93.5" (2375 mm) for 4WD models. The tractor
is compatible with a Massey Ferguson 838 front end loader with lift
capacity to full height of 3000 lbs (1360 kg).
| Engine Model |
Perkins A4.248S |
| Engine Type |
Diesel, liquid-cooled |
| Number of Cylinders |
4 |
| Aspiration |
Natural |
| Cylinder Bore, in (mm) |
4,00 (101,0) |
| Piston Stroke, in(mm) |
5,00 (127,0) |
| Displacement, cu.in (L) |
248 (4,061) |
| Max. engine power, Hp (kW) |
80,0 (59,0) |
| Max. torque, Nm (lb-ft) |
280 (207) |
| Engine speed at max. torque, rpm |
1400 |
| Idling speed (rev/min) |
850 |
| Max. rated speed (rev/min) |
2200 |
| Torque at rated speed, Nm (lb-ft) |
260 (192,6) |
| Max. no load speed (rev/min) |
2310 |
| Lubrication System |
Gear type pump, strainer on suction side and external camsier type filter |
| Valves clearance (inlet/exhaust), in (mm) |
0,012 (0,30) |
| Lifting pump |
AC DELCO |
| Fuel filter with sediment bowl |
NAV |
| Fuel filter elements |
One |
| Fuel injection pump |
Rotary with mechanical governor |
| Injection timing (degrees) |
23 |
| Cold weather starting |
Thermostart or ether, according to market |
| Air cleaner |
2-stage, dry element, with centrifugal prefilter and blockage indicator |
| Electrical system |
12 volt, negative earth |
| Batteries |
One |
| Cooling system |
Pressurized system with centrifugal pump |
| Centrifugal water pump |
belt driven |
| Fan Type |
belt driven |
| Belt deflection, in (mm) |
0,75 (19,0) |
| Fuel tank capacity, gal (L) |
39,0 (148,0) |
| Cooling system capacity, qts (L) |
17,0 (16,0) |
| Engine oil capacity, qts (L) |
8,0 (7,5) |
| PTO Types |
Rear, Ground Speed, Front and Economy |
| Rear PTO Type |
Independent, proportional to the engine speed |
| Rear PTO power, Hp (kW) |
71,6 (53,0) |
| Rear PTO Speeds (rev/min) |
540 at 1980, 1000 at 2000 |
| Front PTO |
Optional |
| Front PTO Speeds (rev/min) |
1000 at 2040 |
| Front PTO power, Hp (kW) |
79,7 (59,0) |
| Economy PTO Type |
Independent (optional extra) |
| Economy PTO Speeds (rev/min) |
540/1000 at 1550 |
| Ground speed PTO |
Optional, 540/1000 rev/min |
| Transmission Type |
Fully synchronized |
| Gearbox Type |
16F/16R (24F/24R with creeper) |
| Forward Gears |
16 (24) |
| Reverse Gears |
16 (24) |
| Clutch |
Dry single disc |
| Clutch Type |
Diaphragm push-type |
| Maximum Travel Speed |
36.5 km/h |
| Transmission Type |
SpeedShift |
| Gearbox Type |
32F/32R (48F/48R with creeper) |
| Forward Gears |
32 (48) |
| Reverse Gears |
32 (48) |
| Clutch |
Dry single disc |
| Clutch Type |
Diaphragm push-type |
| Disc diameter |
330 mm (13 in) |
| Clutch adjustment |
Automatic |
| Maximum Travel Speed |
39.1 km/h |
| Drive Wheels |
2WD/4WD |
| Steering |
Hydrostatic |
| Steering column |
Fixed or tiltable telescopic |
| Main brake Type |
Oil-immersed single disc per wheel |
| Brake outside diameter, in (mm) |
13.9 (355,0) |
| Brake inside diameter, in (mm) |
12.2 (310,0) |
| Handbrake |
Operates on the rear axle bevel drive pinion |
| Front Tire Size |
12.4-24 |
| Rear Tire Size |
18.4-30 |
| Type of Hydraulic System |
Open |
| Hydraulic Pressure, bar (psi) |
180 (2600) |
| Steering Pressure, bar (psi) |
170 (2500) |
| Hydraulic Pump Flow, gpm (lpm) |
13,2 (50,0) |
| Steering Pump Flow, gpm (lpm) |
7,6 (29,0) |
| Hydraulic Capacity, gal (L) |
15,8 (60,2) |
| Numbers of Valves |
2 to 4 |
| 3-Point Hitch |
With fixed, telescopic or quick attach hook ball ends |
| 3-Point Hitch Category |
2 |
| Position of lift rod on lower links, mm |
508/608 |
| Length of lift rods, in (mm) |
22,2-30,1 (565-765) |
| Lower links (full raised at 508 mm), lbs (kg) |
6437-5326 (2926-2421) |
| Lower links (full raised at 608 mm), lbs (kg) |
7051-5865 (3205-2666) |
| Wheelbase (2WD), in (mm) |
93,3 (2371) |
| Wheelbase (4WD), in (mm) |
93,5 (2375) |
| Overall length with drawbar (2WD), in (mm) |
117,9 (3995) |
| Overall length with drawbar (4WD), in (mm) |
160,2 (4069) |
| Height (cab tractor), in (mm) |
103,4 (2627) |
| Overall width, in (mm) |
101,2 (2570) |
| Ground clearance (under drawbar frame), in (mm) |
15,2 (385) |
| Height to steering wheel (platform models), in (mm) |
77,6 (1971) |
| Turning circle w/o brakes (2WD/4WD), in (mm) |
145,7 (3700) / 165,3 (4200) |
| Turning circle w/brakes (2WD/4WD), in (mm) |
127,9 (3250) / 149,6 (3800) |
| Total weight with full tank (2WD), lbs (kg) |
7859 (3565) |
| Total weight with full tank (4WD), lbs (kg) |
8465 (3840) |
| Loader model |
MF 838 |
| Max Lift Height (to pin) |
129 in (3270 mm) |
| Clearance, dumped bucket |
102,5 in (2600 mm) |
| Dump reach |
31,5 in (800 mm) |
| Dump angle |
36 |
| Reach at ground |
77 in (1950 mm) |
| Rollback at ground |
20 |
| Breakout force (at pin) |
4100 lbs (1859 kg) |
| Lift to full height (at pin) |
3000 lbs (1360 kg) |
| Bucket width |
72 in (1820 mm) |
| Raise time to height |
4 sec. |
| Bucket dump time |
3,25 sec. |
| Lowering time |
2,5 sec. |
